| Dual-Con Serie |  Swiss Quality |
| Variable Vakuum Kondensatoren |
Rugged — Compact — Long Life — Low Torque
- 125 pF / 10 kV
- 250 pF / 10 kV
- 500 pF / 5 kV
- 650 pF / 5 kV
- 1000 pF / 5 kV
Rugged double bearing construction. Suitable for high vibration and shock applications — Integrated bearing system
allows for reduced height and our smallest diameter series — Drive system optimized for over 5 million cycles —
Low torque allows for very high tuning speed.
Eigenschaften:
Strom (max effekt.)
65 A
Spitzenspannung
10 kV

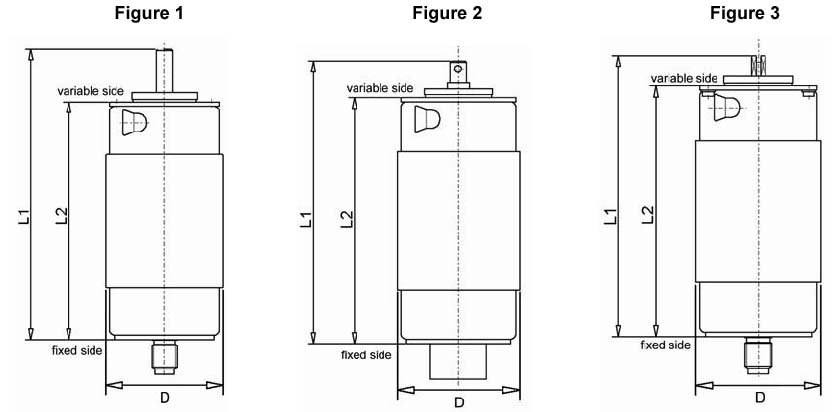

Abmessung
(durchmesser x länge)
45 x 90 mm
Gesamtlänge
< 110 mm
geringes Drehmoment (typ.)
0,15 Nm
hohe Abstimmungsgeschwindigkeit

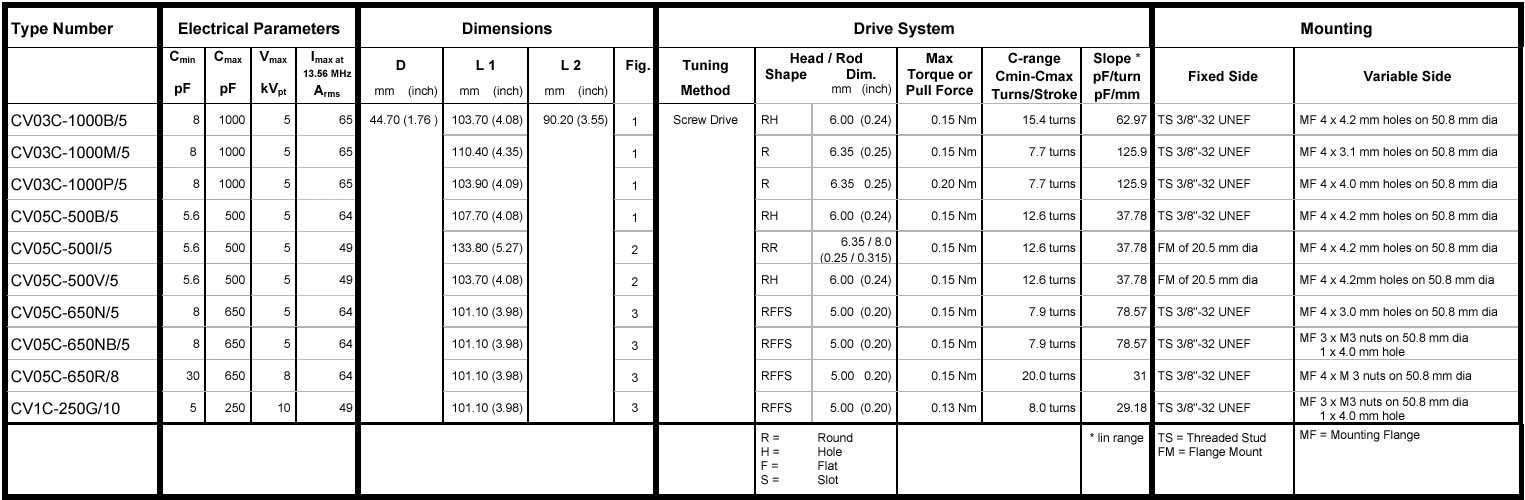

detaillierte
Tabelle
Typ
Kapazität
Kapazität
UPT
Strom [A]
Ø
Höhe
alternative Bezeichnung
Bestellungsnummer
Cmax [pF]
Cmin [pF]
Test [kV]
Imax
(13,56MHz)
[mm]
[mm]
Comet
Jennings
Jennings
CVDU-1200AC/5-CGD
1200
50
5
64
44,7
116,9
CV03C-1200B/5
CVDU-1000BC/5-BAF-U
1000
8
5
47
44,7
117,1
CV03C-1000P/3
CVDU-1000CC/5-BAFH-U
1000
8
5
47
45,2
120,3
CVDU-1000CC/5-EKF-U
1000
8
5
47
44,7
127,4
CVDU-1000DC/5-CGD
1000
8
5
47
44,7
116,9
CVDU-1000AC/3-AAD-U
1000
8
3
47
45,2
132,6
CV03C-1000I/3
CVDU-1000AC/3-ALD-U
1000
8
3
47
45,2
132,6
CV03C-1000H/3
CVDU-1000AC/3-DEF
1000
8
3
47
44,7
114,3
CV03C-1000T/3
CVDU-1000AC/3-DEF-U
1000
8
3
47
44,7
114,3
CV03C-1000N/3
CMV1-1000-0003
CVDU-1000AC/3-FRF-U
1000
8
3
47
45,2
109,95
CV03C-1000F/3
CMV1-1000-0003
CVDU-1000AC/3-GAD-MU
1000
8
3
47
45,2
121,9
CV03C-1000K/3
CVDU-1000AC/3-GAF-U
1000
8
3
47
45,2
122,1
CV03C-1000G/3
CVDU-650AC/8-DEA
650
30
8
48
44,7
114,3
CV05C-650R/8
CVDU-650BC/5-BAF-U
650
8
5
48
44,7
123,6
CV05C-650P/5
CVDU-650BC/5-KLD
650
8
5
44,7
118
CV05C-650U/5
CVDU-650CC/5-BADH-M
650
8
5
48
44,7
146,8
CVDU-650CC/5-BAF-U
650
8
5
48
44,7
123,6
CVDU-650CC/5-BPFH-U
650
8
5
48
45,2
163,6
CVDU-650CC/5-CGD
650
8
5
64
44,7
116,9
CVDU-650CC/5-DEF
650
8
5
48
44,7
114,3
CV05C-650N/5
CMV1-650
CVDU-650CC/5-DEFZ
650
8
5
48
44,7
114,3
CVDU-650CC/5-FRF-U
650
8
5
48
45,2
109,95
CVDU-650CC/5-GAF-U
650
8
5
48
45,2
122,1
CVDU-650CC/5-ZJP-U
650
8
5
48
45,2
107,1
CVDU-650DC/5-ZRF-U
650
8
5
48
45,2
114,5
CV05C-650I/5
CVDU-600AC/7.5-DEA
600
8
7,5
79
44,7
114,3
CVDU-500AC/5-BAD
500
5,6
5
49
44,7
127,2
CV05C-500Z/5
CVDU-500AC/5-BAD-CU
500
5,6
5
49
44,7
156,7
CV05C-500IE/5
CVDU-500AC/5-BADH-MU
500
5,6
5
49
45,2
147
CV05C-500I/5
CVDU-500AC/5-CGD
500
5,6
5
64
44,7
116,9
CV05C-500B/5
CVDU-500AC/5-CGD-M
500
5,6
5
49
44,7
116,7
CV05C-500V/5
CVDU-500AC/5-FRF-U
500
5,6
5
49
45,2
109,95
CV05C-500H/5
CVDU-500AC/5-GAF-U
500
5,6
5
49
45,2
122,1
CV05C-500G/5
CVDU-500AC/5-JAD-U
500
5,6
5
49
45,2
117,3
CV05C-500F/5
CMV2-500-0105
UCM-500/5/25
CVDU-500BC/5-NJP-HU
500
5
5
49
45,2
181,35
CV05C-500E/5
CVDU-500CC/5-FRF-U
500
5
5
49
45,2
109,95
CV05C-500T/5
CVDU-500DW/5-BFA-R
500
6
5
67
45,2
148,4
CV05W-500E/5
CVDU-250CC/7.5-BADH-M
250
5
7,5
53
45,2
147
CVDU-250CC/5-BAD
250
5
5
56
45,2
147
CV05C-250F/5
CVDU-250AC/10-DEF-U
250
5
10
49
44,7
90,2
CV1C-250G/10
CVDU-250BC/10-BAF-U
250
5
10
49
44,7
90,2
CV1C-250H/10
CVDU-125AC/8-BAD-CM
125
5
8
56
44,7
156,7
CV05C-125GE/8
The information above is not to be used for design purposes. For detailed information refer to the
individual datasheet, available on our website www.wvs-tech.de or from our local representative.
zurück zur Auswahl
Fixe
Vakuum Kondensatoren
|
Rugged double bearing construction. Suitable for high vibration and shock applications — Integrated bearing system allows for reduced height and our smallest diameter series — Drive system optimized for over 5 million cycles — Low torque allows for very high tuning speed. |
|
Eigenschaften: | |
| Strom (max effekt.) | 65 A | |
| Spitzenspannung | 10 kV | |
| Abmessung (durchmesser x länge) |
45 x 90 mm | |
| Gesamtlänge | < 110 mm | |
| geringes Drehmoment (typ.) | 0,15 Nm | |
| hohe Abstimmungsgeschwindigkeit | ||
| detaillierte Tabelle |
| Typ | Kapazität | Kapazität | UPT | Strom [A] | Ø | Höhe | alternative Bezeichnung | ||
| Bestellungsnummer | Cmax [pF] | Cmin [pF] | Test [kV] | Imax (13,56MHz) |
[mm] | [mm] | Comet | Jennings | Jennings |
| CVDU-1200AC/5-CGD | 1200 | 50 | 5 | 64 | 44,7 | 116,9 | CV03C-1200B/5 | ||
| CVDU-1000BC/5-BAF-U | 1000 | 8 | 5 | 47 | 44,7 | 117,1 | CV03C-1000P/3 | ||
| CVDU-1000CC/5-BAFH-U | 1000 | 8 | 5 | 47 | 45,2 | 120,3 | |||
| CVDU-1000CC/5-EKF-U | 1000 | 8 | 5 | 47 | 44,7 | 127,4 | |||
| CVDU-1000DC/5-CGD | 1000 | 8 | 5 | 47 | 44,7 | 116,9 | |||
| CVDU-1000AC/3-AAD-U | 1000 | 8 | 3 | 47 | 45,2 | 132,6 | CV03C-1000I/3 | ||
| CVDU-1000AC/3-ALD-U | 1000 | 8 | 3 | 47 | 45,2 | 132,6 | CV03C-1000H/3 | ||
| CVDU-1000AC/3-DEF | 1000 | 8 | 3 | 47 | 44,7 | 114,3 | CV03C-1000T/3 | ||
| CVDU-1000AC/3-DEF-U | 1000 | 8 | 3 | 47 | 44,7 | 114,3 | CV03C-1000N/3 | CMV1-1000-0003 | |
| CVDU-1000AC/3-FRF-U | 1000 | 8 | 3 | 47 | 45,2 | 109,95 | CV03C-1000F/3 | CMV1-1000-0003 | |
| CVDU-1000AC/3-GAD-MU | 1000 | 8 | 3 | 47 | 45,2 | 121,9 | CV03C-1000K/3 | ||
| CVDU-1000AC/3-GAF-U | 1000 | 8 | 3 | 47 | 45,2 | 122,1 | CV03C-1000G/3 | ||
| CVDU-650AC/8-DEA | 650 | 30 | 8 | 48 | 44,7 | 114,3 | CV05C-650R/8 | ||
| CVDU-650BC/5-BAF-U | 650 | 8 | 5 | 48 | 44,7 | 123,6 | CV05C-650P/5 | ||
| CVDU-650BC/5-KLD | 650 | 8 | 5 | 44,7 | 118 | CV05C-650U/5 | |||
| CVDU-650CC/5-BADH-M | 650 | 8 | 5 | 48 | 44,7 | 146,8 | |||
| CVDU-650CC/5-BAF-U | 650 | 8 | 5 | 48 | 44,7 | 123,6 | |||
| CVDU-650CC/5-BPFH-U | 650 | 8 | 5 | 48 | 45,2 | 163,6 | |||
| CVDU-650CC/5-CGD | 650 | 8 | 5 | 64 | 44,7 | 116,9 | |||
| CVDU-650CC/5-DEF | 650 | 8 | 5 | 48 | 44,7 | 114,3 | CV05C-650N/5 | CMV1-650 | |
| CVDU-650CC/5-DEFZ | 650 | 8 | 5 | 48 | 44,7 | 114,3 | |||
| CVDU-650CC/5-FRF-U | 650 | 8 | 5 | 48 | 45,2 | 109,95 | |||
| CVDU-650CC/5-GAF-U | 650 | 8 | 5 | 48 | 45,2 | 122,1 | |||
| CVDU-650CC/5-ZJP-U | 650 | 8 | 5 | 48 | 45,2 | 107,1 | |||
| CVDU-650DC/5-ZRF-U | 650 | 8 | 5 | 48 | 45,2 | 114,5 | CV05C-650I/5 | ||
| CVDU-600AC/7.5-DEA | 600 | 8 | 7,5 | 79 | 44,7 | 114,3 | |||
| CVDU-500AC/5-BAD | 500 | 5,6 | 5 | 49 | 44,7 | 127,2 | CV05C-500Z/5 | ||
| CVDU-500AC/5-BAD-CU | 500 | 5,6 | 5 | 49 | 44,7 | 156,7 | CV05C-500IE/5 | ||
| CVDU-500AC/5-BADH-MU | 500 | 5,6 | 5 | 49 | 45,2 | 147 | CV05C-500I/5 | ||
| CVDU-500AC/5-CGD | 500 | 5,6 | 5 | 64 | 44,7 | 116,9 | CV05C-500B/5 | ||
| CVDU-500AC/5-CGD-M | 500 | 5,6 | 5 | 49 | 44,7 | 116,7 | CV05C-500V/5 | ||
| CVDU-500AC/5-FRF-U | 500 | 5,6 | 5 | 49 | 45,2 | 109,95 | CV05C-500H/5 | ||
| CVDU-500AC/5-GAF-U | 500 | 5,6 | 5 | 49 | 45,2 | 122,1 | CV05C-500G/5 | ||
| CVDU-500AC/5-JAD-U | 500 | 5,6 | 5 | 49 | 45,2 | 117,3 | CV05C-500F/5 | CMV2-500-0105 | UCM-500/5/25 |
| CVDU-500BC/5-NJP-HU | 500 | 5 | 5 | 49 | 45,2 | 181,35 | CV05C-500E/5 | ||
| CVDU-500CC/5-FRF-U | 500 | 5 | 5 | 49 | 45,2 | 109,95 | CV05C-500T/5 | ||
| CVDU-500DW/5-BFA-R | 500 | 6 | 5 | 67 | 45,2 | 148,4 | CV05W-500E/5 | ||
| CVDU-250CC/7.5-BADH-M | 250 | 5 | 7,5 | 53 | 45,2 | 147 | |||
| CVDU-250CC/5-BAD | 250 | 5 | 5 | 56 | 45,2 | 147 | CV05C-250F/5 | ||
| CVDU-250AC/10-DEF-U | 250 | 5 | 10 | 49 | 44,7 | 90,2 | CV1C-250G/10 | ||
| CVDU-250BC/10-BAF-U | 250 | 5 | 10 | 49 | 44,7 | 90,2 | CV1C-250H/10 | ||
| CVDU-125AC/8-BAD-CM | 125 | 5 | 8 | 56 | 44,7 | 156,7 | CV05C-125GE/8 | ||
| The information above is not to be used for design purposes. For detailed information refer to the
individual datasheet, available on our website www.wvs-tech.de or from our local representative. |
