| Li-Con Serie |  Swiss Quality |
| Variabler Vakuum Kondensator |
Small Size
 |

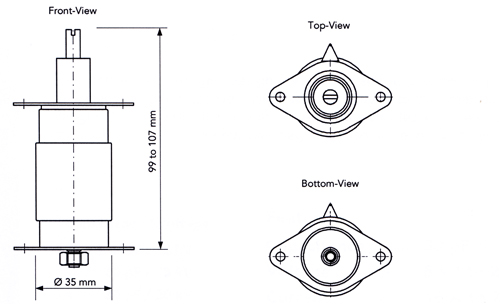

Li-Con Smallest size - Very high self resonance frequency - Lowest Cmin values Smallest size and rugged design - Very high self resonance frequency - Lowest Cmin values and low torque - High voltage relative to the small size - Integrated flanges for an easy installation - Antimagnetic lead screws for research or medical applications like nuclear magnetic resonance imaging systems. Product Brochure Outline Drawings  |
| Typ | Kapazität | Kapazität | UPT | Strom [A] | Ø | Höhe | alternative Bezeichnung | ||
| Bestellungsnummer | Cmax [pF] | Cmin [pF] | Test [kV] | Imax (13,56MHz) |
[mm] | [mm] | Comet | Jennings | Jennings |
| CVLI-125AC/8-BFS | 125 | 5 | 8 | 34 | 34,5 | 107 | CACA-125-0005 | UC-125/5/25 | |
| CVLI-125AC/8-BFS-1 | 125 | 5 | 8 | 34 | 88 | 213 | |||
| CVLI-125AC/8-BFS-2 | 125 | 5 | 8 | 34 | 34 | 107 | |||
| CVLI-125BC/5-BFNH | 125 | 5 | 5 | 28 | 34,5 | 125 | CV05C-125F/5 | ||
| CVLI-30DC/20-BAN | 30 | 3 | 20 | 20 | 34,5 | 105 | |||
| CVLI-30AC/15-BFSF | 30 | 3 | 15 | 16 | 34 | 99,8 | CV1C-30B/15 | ||
| CVLI-30BC/15-BFSF | 30 | 3 | 15 | 16 | 34 | 99,8 | CV1C-30D/15 | ||
| CVLI-30CC/15-BAN | 30 | 3 | 15 | 20 | 34,5 | 105 | CV1C-30E/15 | CADDN-30-15S | UC-30/10/20 |

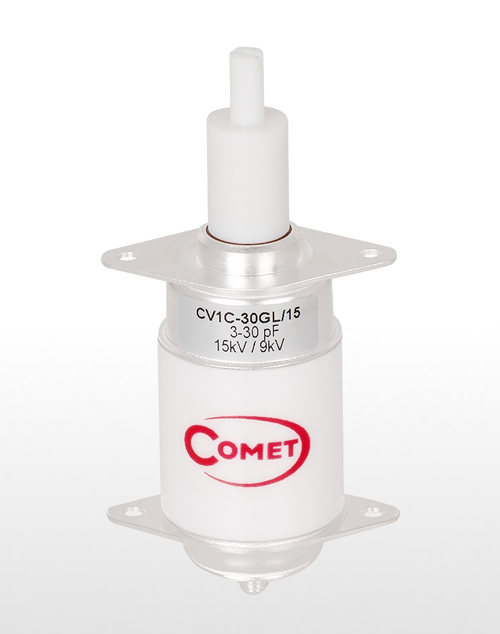

| CVLI-30EC/15-BFSF | 30 | 3 | 15 | 20 | 34,5 | 99,8 | CV1C-30GL/15 | CADC30-10D2768 | |
| CVLI-30EC/15-BFSF-1 | 30 | 3 | 15 | 15 | 34 | 99,8 | CV1C-30KL/15 | ||
| CVLI-10AC/20-BAN | 10 | 3 | 20 | 9 | 34,5 | 105 | CV1C-10E/20 | ||
| The information above is not to be used for design purposes. For detailed information refer to the
individual datasheet, available on our website www.wvs-tech.de or from our local representative. |
