WVS-Technology / Produktinformationen

Midi-Con

Zur Produktübersicht ↗
Midi-Con Serie Comet-Logo
Swiss Quality
Variabler Vakuum Kondensator


Wide Tuning Range — Long Life


  •    200 pF / 15 kV
  •    500 pF / 15 kV
  •    750 pF /   5 kV
  •  1000 pF /   5 kV
  •  1500 pF / 15 kV
  •  2000 pF /   5 kV
 Produktinformationen Produktinformationen Standard mid-size capacitor for general applications – Tuning range typically 100:1 (Cmax to Cmin) – Auxillary water cooling allows for improved current capability – Drive system optimized for over 1 million cycles
  With Integrated-Flange With Flange-Mount

Midi-Con Variabler Vakuum Kondensator Eigenschaften:
Strom (max effekt.) 81 A
Spitzenspannung 15 kV
Abmessung
(durchmesser x länge)		 86 x 140 mm
Gesamtlänge < 191 mm
geringes Drehmoment (typ.) 0,30 Nm

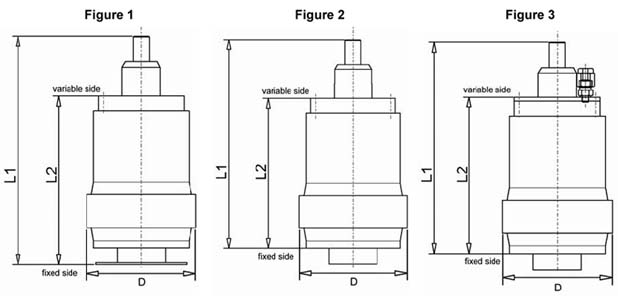

Skizzen von Midi-Con Vakuumkondensatoren

detaillierte Tabelle
Typ Kapazität Kapazität UPT Strom [A] Ø Höhe alternative Bezeichnung
Bestellungsnummer Cmax [pF] Cmin [pF] Test [kV] Imax
(13,56MHz)		 [mm] [mm] Comet Jennings Jennings
CVMI-2000AC/5-AACA-L 2000 20 5 63 86 180 CV05C-2000TN/5
CVMI-2000AC/5-AACE-L 2000 20 5 63 86 180 CV05C-2000TKN/5
CVMI-2000AC/5-AAC-L 2000 20 5 63 86 180 CV05C-2000T/5
CVMI-2000AC/5-BEDA-BL 2000 20 5 63 86 181
CVMI-2000AC/5-BEDA-CL 2000 20 5 63 86 181
CVMI-2000AC/5-BEDA-L 2000 20 5 63 86 180
CVMI-2000AC/5-BEDA-L1 2000 20 5 77 86 180
CVMI-2000AC/5-BED-BL 2000 20 5 63 86 181
CVMI-2000AC/5-BED-L 2000 20 5 63 86 180
CVMI-2000AC/5-BEF-L 2000 20 5 63 86 180 CV05C-2000SA/5
CVMI-2000AW/5-BEDE-L 2000 20 5 85 86 181
CVMI-2000BC/5-AAC-M 2000 20 5 63 86 179,7 CV05C-2000EW/5 CVCD-2000
CVMI-2000BC/5-ANC-M 2000 20 5 63 86 179,7 CV05C-2000N/5 CVCD-2000
CVMI-2000CC/5-AAC-M 2000 20 5 63 86 179,7 CV05C-2000JW/5
CVMI-1500AC/5-AAC-M 1500 10 5 65 86 179,7 CV05C-1500EW/5 CVCD-1500-5S
CVMI-1500AC/5-BCC-M 1500 10 5 65 86 179,7 CV05C-1500L/5 CVCD-1500-5S
CVMI-1500AC/5-BGP-M 1500 10 5 65 75,4 146,7 CV05C-1500FW/5
CVMI-1500AC/5-EKCA-M 1500 10 5 79 86 187,2 CV05C-1500LON/5
CVMI-1500AC/5-EKC-M 1500 10 5 80 86 187,2 CV05C-1500LO/5
CVMI-1500AW/5-AAC-M 1500 10 5 74 86 178,7 CV05W-1500EW/5
CVMI-1500BC/5-AAC-M 1500 10 5 65 86 179,7 CV05C-1500JW/5
CVMI-1500BC/5-ABC-M 1500 10 5 65 86 179,7 CV05C-1500JWB/5
CVMI-1000AC/5-AACA-L 1000 10 5 80 86 180 CV05C-1000WN/5
CVMI-1000AC/5-AACE-L 1000 10 5 65 86 180 CV05C-1000WKN/5
CVMI-1000AC/5-AAC-L 1000 10 5 65 86 180 CV05C-1000W/5
CVMI-1000AC/5-BAC-L 1000 10 5 65 86 180 CV05C-1000Y/5
CVMI-1000AC/5-CSP-L 1000 10 5 80 86 180 CV05C-1000WP/5
CVMI-1000BC/5-AAC-M 1000 10 5 80 86 179,7 CV05C-1000EW/5 CVCD-1000-5S
CVMI-1000BC/5-ANC-M 1000 10 5 65 86 180 CV05C-1000U/5
CVMI-1000BW/5-AAC-M 1000 10 5 74 86 178,7 CV05W-1000EW/5
CVMI-1000CC/5-AAC-M 1000 10 5 65 86 179,7 CV05C-1000EW/5 CVCD-1000-5S
CVMI-1000CC/5-ABC-M 1000 10 5 65 86 179,7 CV05C-1000JWB/5
CVMI-750AC/5-AAC-M 750 10 5 65 86 179,7 CV05C-750EW/5 CVCE-750-5S
CVMI-750BC/5-AAC-M 750 10 5 65 86 179,7 CV05C-750JW/5
CVMI-750BC/5-ABC-M 750 10 5 65 86 179,7 CV05C-750JWB/5
CVMI-500AC/15-AAC-M 500 12 15 68 86 190,7 CV1C-500EW/15 CVDD-500-15S UC-500/10/70J
CVMI-500AC/15-ACC-M 500 12 15 68 86 190,7 CV1C-500FW/15
CVMI-500AW/15-AAC-M 500 12 15 83 88 193 CV1W-500EW/15
CVMI-500BC/15-ACCA-L 500 12 15 68 88 191 CV1C-500WN/15
CVMI-500BC/15-ACCE-L 500 12 15 68 88 191 CV1C-500WKN/15
CVMI-500BC/15-ACC-L 500 12 15 68 88 191 CV1C-500W/15
CVMI-500BC/15-BAC-L 500 12 15 68 86 191 CV1C-500Y/15
CVMI-500BC/15-BEC-L 500 12 15 68 86 191 CV1C-500U/15
CVMI-500BC/15-BEDA-BL 500 12 15 68 86 194
CVMI-500BC/15-BEDA-CL 500 12 15 68 86 194
CVMI-500BC/15-BEDA-L 500 12 15 68 86 191
CVMI-500BC/15-BEDA-L1 500 12 15 81 86 140
CVMI-500BC/15-BED-BL 500 12 15 68 86 194
CVMI-500BC/15-BED-L 500 12 15 68 86 191 CV1C-500X/15
CVMI-500BC/15-BEF-L 500 12 15 68 86 191 CV1C-500UA/15
CVMI-500BC/15-CSP-L 500 12 15 68 88 191 CV1C-500WP/15
CVMI-500BW/15-BEDE-L 500 12 15 85 86 191
CVMI-500CC/15-AAC-M 500 12 15 68 88 191 CV1C-500JW/15
CVMI-500CC/15-ABC-M 500 12 15 68 88 191 CV1C-500JWB/15
CVMI-500CC/15-CTP-M 500 12 15 68 86 187,7 CV1C-500GW/15
CVMI-400AC/15-AAC-AM 400 12 15 67 86 190,7 CV1C-400EWV/15 CVDD-400
CVMI-400AC/15-AAC-M 400 12 15 80 86 190,7 CV1C-400EW/15 CVDD-400
CVMI-400AC/15-ABC-M 400 12 15 67 86 190,7 CV1C-400EWB/15
CVMI-400AC/15-ZJP-KM 400 12 15 68 93 139,7 CV1C-400FW/15
CVMI-300AW/20-AJA-M 300 15 20 83 88 198 CV1W-300M/20
CVMI-300BC/15-AAC-M 300 10 15 68 88 191 CV1C-300N/15
CVMI-300CC/15-AAC-M 300 10 15 68 86 190,7 CV1C-300EW/15 CVDD-300-15 UC-300/10/70J
CVMI-300CC/15-AJL-M 300 10 15 68 86 190,7 CV1C-300L/15
CVMI-300CC/15-BAC-M 300 10 15 68 86 190,7 CV1C-300K/15
CVMI-300CC/15-BCC-L 300 10 15 68 86 190,7 CV1C-300P/15
CVMI-300CC/15-BCC-M 300 10 15 79 86 190,7 CV1C-300H/15 CVDD-300-15D2370 UC-300/10/70JA
CVMI-300CC/15-NAC-M 300 10 15 79 86 190,7 CV1C-300D/15
CVMI-300CC/15-ZJP-KM 300 10 15 68 93 139,7 CV1C-300FW/15
CVMI-250AC/15-AAC-M 250 10 15 68 86 190,7 CV1C-250E/15
CVMI-200AC/15-AAC-M 200 10 15 68 86 179,7 CV1C-200EW/15
CVMI-200BC/15-AAC-M 200 10 15 68 86 179,7 CV1C-200JW/15

The information above is not to be used for design purposes. For detailed information refer to the individual datasheet, available on our website www.wvs-tech.de or from our local representative.
