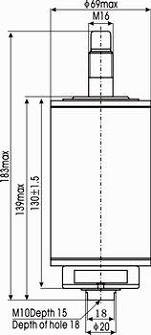

| Vakuum Unterbrecher | Serie TJC20-7.2/400 |
 Download PDF-Dokument |
| MAIN TECHNICAL DATA | Unit | TJC20-7.2/400 | |
| Rated Voltage | kV | 7,2 | |
| Lightning Impulse Withstand Voltage (Peak) | kV | 60 | |
| Short-time (1min) Power-frequency Withstand Voltage | kV | 32 | |
| Rated Frequency | Hz | 50/60 | |
| Rated Current | A | 400 | |
| Rated Short-time Withstand Current | kA | 4 | |
| Rated duration of Short-circuit | s | 4 | |
| Rated Breaking Current | A | 4000 | |
| Limiting Breaking Current | kA | ||
| Rated Making Current | kA | 10 | |
| Rated Operating Frequency | AC-3 | Operations/h | |
| AC-4 | 300 | ||
| Short-time Operating Frequency | Operations/h | ||
| Utilization Category | AC | ||
| Electrical Endurance | AC-3 | Operations | 2,5x105 |
| AC-4 | 10x104 | ||
| Mechanical Endurance | Operations | ||
| Clearance Between Open Contacts | mm | 4~5,5 | |
| Contact Closing Force Due to Bellows and Atmosphere | N | 70 +/- 10 | |
| Counterforce of Contacts at Full Stroke | N | 90 +/- 10 | |
| Circuit Resistance at Min. Rated Contact Force | µΩ | ≤ 160 | |
| Contact Limit Erosion | mm | 1,5 | |
| Mass of Moving Parts | kg | 0,42 | |
| Internal Gas Pressure | Pa | ≤1,33x10-3 | |
| Shelf Life | Year | 20 | |
 |
 |
