| Vetro-Con Serie |  Swiss Quality |
| Variabler Vakuum Kondensator |
High Current
 |
Vetro-Con Replaces old glass capacitors - Very long life time - High voltages relative to capacitance Ceramic envelope replaces glass envelopes and allows higher terminal and mechanical loads - Most units are electrically and mechanically compatible and interchangeable - Very long life time because of special bellows and lead screws - High voltages relative to capacitance values - Low torque allows for high tuning speed - Additional mounting flanges necessary - Mostly used in semiconductor applications. Product Brochure Outline Drawings    |
| Typ | Kapazität | Kapazität | UPT | Strom [A] | Ø | Höhe | alternative Bezeichnung | ||
| Bestellungsnummer | Cmax [pF] | Cmin [pF] | Test [kV] | Imax (13,56MHz) |
[mm] | [mm] | Comet | Jennings | Jennings |
| CVVE-500AC/15-AAC-M | 500 | 12 | 15 | 70 | 88 | 199 | CV1C-500K/15 | UCSF-500-15S, CSVF-500-15S | U-500A/10/40JA |

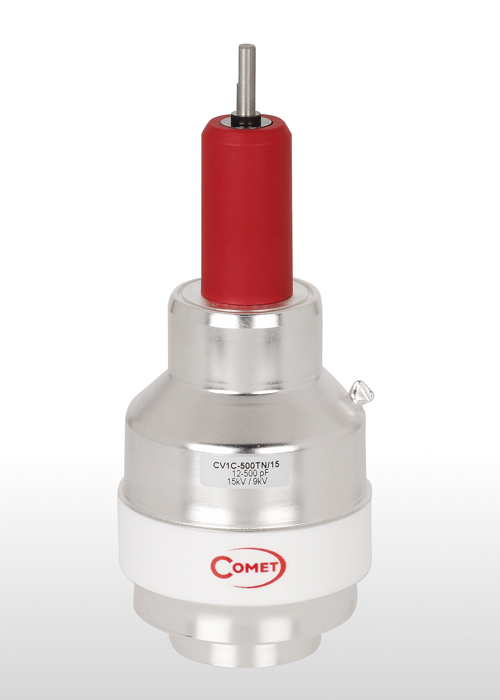

| CVVE-500AC/15-BCAA-M | 500 | 12 | 15 | 70 | 86 | 207,5 | CV1C-500TN/15 | CSVF-500-0315 | |
| CVVE-500AC/15-BCAH-M | 500 | 12 | 15 | 70 | 88 | 196 | CV1C-500LW/15 | CSVF-500, UCSF-500 | U-500A/10/40J |
| CVVE-500AC/15-BCA-M | 500 | 12 | 15 | 70 | 88 | 202 | CV1C-500T/15 | CSVF-500-0315 | |
| CVVE-500AC/15-CAC-M | 500 | 12 | 15 | 79 | 86 | 195 | CV1C-500B/15 | ||
| CVVE-250AC/15-AAAA | 250 | 8 | 15 | 70 | 88 | 200 | |||
| CVVE-250AC/15-AAA-M | 250 | 8 | 15 | 70 | 88 | 200 | CV1C-250F/15 | UCSF-250-15S | U-250/10/40JA |
| The information above is not to be used for design purposes. For detailed information refer to the
individual datasheet, available on our website www.wvs-tech.de or from our local representative. |
