| Vitra-Con Serie |  Swiss Quality |
| Variabler Vakuum Kondensator |
High Current - High Capacity
 |

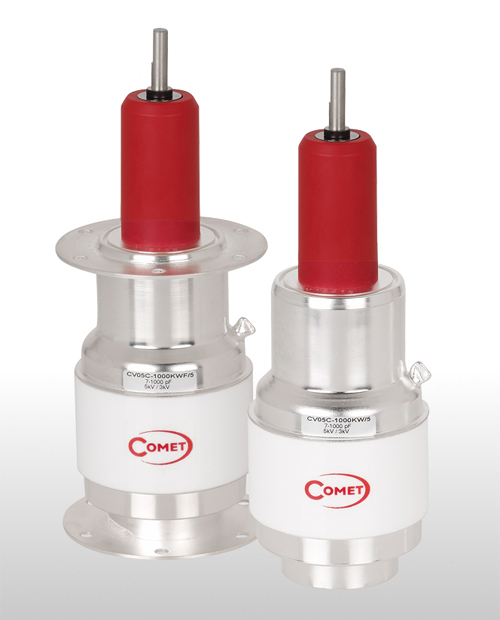

Vitra-Con Replaces old glass capacitors - Very long life time - Higher capacitance values Ceramic envelope replaces glass envelopes and allows higher terminal and mechanical loads - Most units are electrically and mechanically compatible and interchangeable - Very long life time because of special bellows and lead screws - Low torque allows for very high tuning speed - Additional mounting flanges available - Mostly used in different semiconductor applications. Product Brochure |

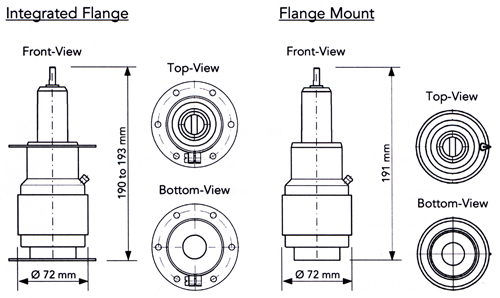

Outline Drawings |
| Typ | Kapazität | Kapazität | UPT | Strom [A] | Ø | Höhe | alternative Bezeichnung | ||
| Bestellungsnummer | Cmax [pF] | Cmin [pF] | Test [kV] | Imax (13,56MHz) |
[mm] | [mm] | Comet | Jennings | Jennings |
| CVVI-1500AC/5-ACD-M | 1500 | 10 | 5 | 72 | 70 | 193 | CV05C-1500N/5 | UCSL 1500-5D-2911 | |
| CVVI-1500BC/5-EKA-M | 1500 | 10 | 5 | 60 | 51,4 | 190,7 | CV05C-1500H/5 | UCSL-1500-5S | |
| CVVI-1000AC/5-AAD-M | 1000 | 7 | 5 | 58 | 71 | 193 | CV05C-1000NW/5 | CVCJ-1000 | U-1000A/3/40JD |
| CVVI-1000AC/5-ACDA-M | 1000 | 7 | 5 | 65 | 70 | 193 | CV05C-1000XN/5 | CVCJ-1000, UCSL-1000 | U-1000A/3/40JF |
| CVVI-1000AC/5-ACD-M | 1000 | 7 | 5 | 65 | 70 | 193 | CV05C-1000X/5 | CVCJ-1000, UCSL-1000 | U-1000A/3/40JF |
| CVVI-1000AC/5-EKD-L | 1000 | 7 | 5 | 79 | 82 | 191 | CV05C-1000KWF/5 | ||
| CVVI-1000AC/5-EKD-M | 1000 | 7 | 5 | 58 | 70 | 190 | CV05C-1000KW/5 | CVCJ-1000, UCSL-1000 | U-1000A/3/40JF |
| CVVI-1000AC/5-MAD-M | 1000 | 7 | 5 | 79 | 70 | 193 | CV05C-1000NH/5 | ||
| CVVI-75AC/25-BBA-L | 75 | 10 | 25 | 70 | 193,5 | CV1C-75E/25 | CVFA-75-0030 | ||
| The information above is not to be used for design purposes. For detailed information refer to the
individual datasheet, available on our website www.wvs-tech.de or from our local representative. |
