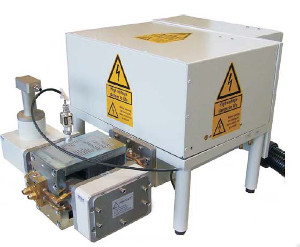

MAGNETRON KOPF
WMK-15K-245
- 15kW Microwave Power Output
- 2450MHz
- Integrated:
- Filament Transformer
- Magnetron, water cooled
- Temperature switch
- Isolator
- Transition WR430 to WR340
- Low weight
TECHNISCHE DATEN:
| HF-OUTPUT-POWER: | 15kWcw µW-output power | Cooling water: | 20...25°C (inlet temp.) |
| FREQUENCY: | 2.45GHz +/-20MHz | Supply data @25°C: | Magnetron head >12l/min, 4bar: Water load >=15l/min, 3bar Circulator >5,5lmin, 4bar |
| MAGNETRON: | 15kWcw / 2450MHz | ||
| WAVEGUIDE FLANGE: | CPR 340 (on transition) | CONNECTORS: | |
| ISOLATOR: | integrated | ELECTRIC: | Cable clamps |
| ASSEMBLY: | Fully enclosed aluminium housing, | COOLING WATER: | 9mm hose sleeve |
| Solid encapsulated | WAVEGUIDE: | 10 x M6 (20mm) | |

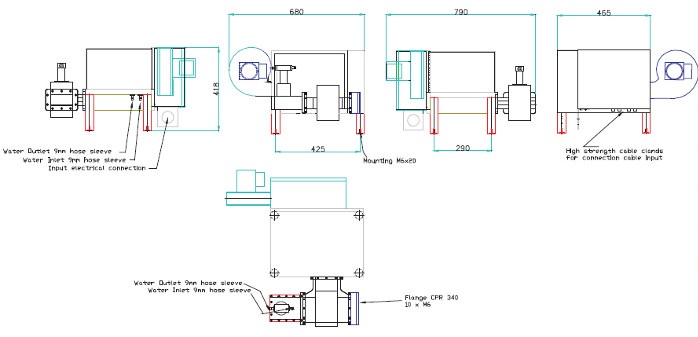

| DIMENSIONS: | L790xH418mmxW680mm | ||
| WEIGHT: | approx. 50kg | ||
| OP. CONDITIONS: | Ambient-Temp. 0...40°C Humidity 50% (@40°C) |
