| Basi-Con Serie |  Swiss Quality |
| Variabler Vakuum Kondensator |
Widely Used - Low Torque - Low Cost
|
Most popular and widely used series means greatest variety of options (C-Curve, Cmax, Cmin) and shortest lead times - Various slopes for C-variation aviable - Low torque or linear drive allow for very high tuning speed. |
 |

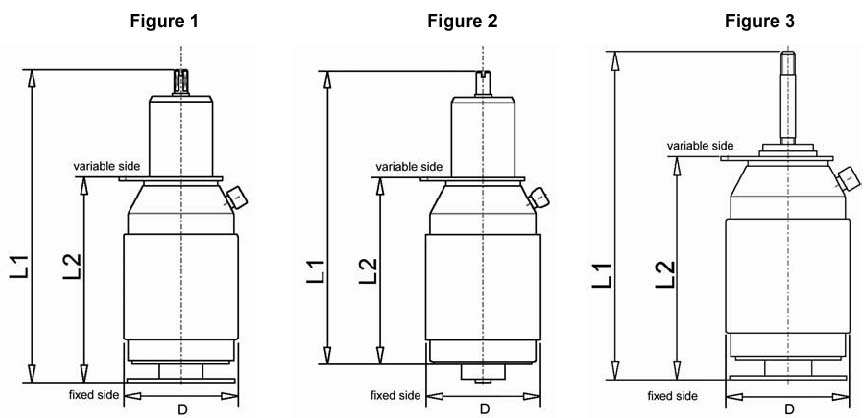

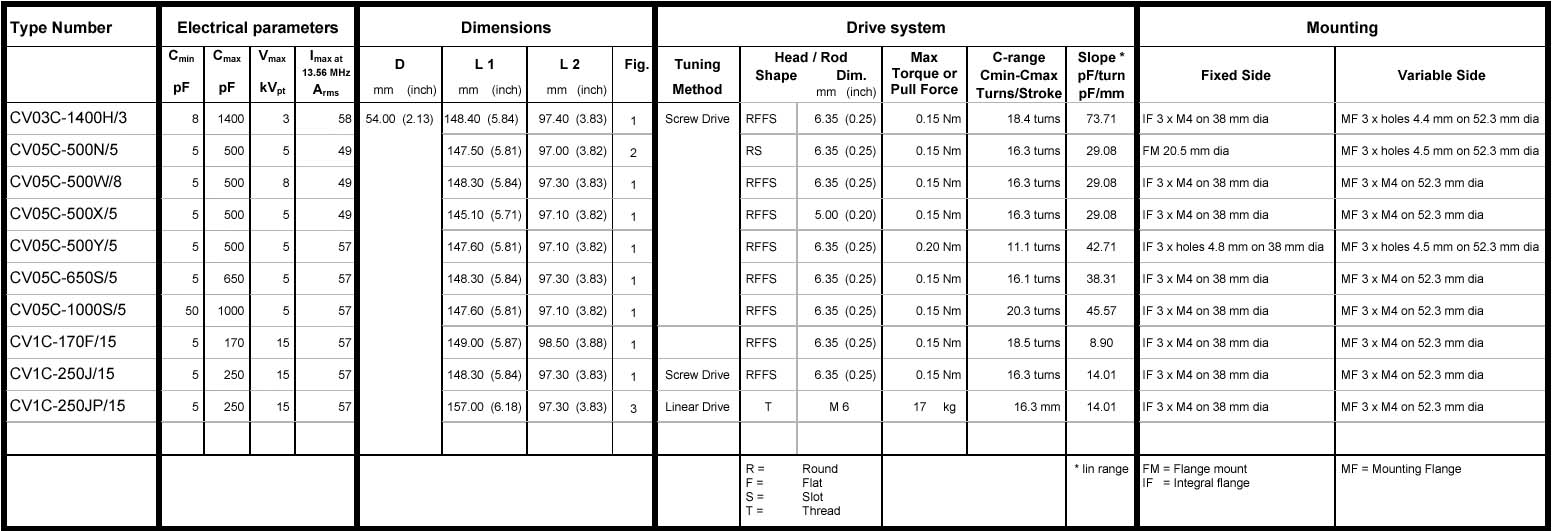

Eigenschaften: | |
| Strom (max effekt.) | 58 A | |
| Spitzenstrom | 15 kV | |
| Abmessung (durchmesser x länge) |
54 x 97 mm | |
| Gesamtlänge | < 148 mm | |
| geringes Drehmoment (typ.) | 0,15 Nm | |
| hohe Abstimmungsgeschwindigkeit | ||
| detaillierte Tabelle |
| Typ | Kapazität | Kapazität | UPT | Strom [A] | Ø | Höhe | alternative Bezeichnung | ||
| Bestellungsnummer | Cmax [pF] | Cmin [pF] | Test [kV] | Imax (13,56MHz) |
[mm] | [mm] | Comet | Jennings | Jennings |
| CVBA-1400AC/4-BEAA-L | 1400 | 8 | 4 | 47 | 51 | 147,6 | |||
| CVBA-1400AC/3-BEA-L | 1400 | 8 | 3 | 47 | 51 | 147,6 | CV03C-1400H/3 | ||
| CVBA-1000AC/5-BCF-L | 1000 | 50 | 5 | 57 | 54 | 146,9 | CV05C-1000SA/5 | ||
| CVBA-1000AC/5-BEA-BL | 1000 | 50 | 5 | 49 | 58,7 | 149,6 | CV05C-1000SIH/5 | ||
| CVBA-1000AC/5-BEA-L | 1000 | 50 | 5 | 49 | 58,7 | 147,6 | CV05C-1000S/5 | ||
| CVBA-1000AC/5-DEA-BL | 1000 | 50 | 5 | 57 | 58,7 | 147,1 | CV05C-1000ZIH/5 | ||
| CVBA-1000BC/3-BEA-L | 1000 | 5 | 3 | 48 | 54 | 149 | CV03C-1000E/3 | ||
| CVBA-650AC/5-BEA | 650 | 5 | 5 | 49 | 58,7 | 152,6 | CV05C-650T/5 | ||
| CVBA-650BC/5-BEA-L | 650 | 5 | 5 | 48 | 58,7 | 147,6 | CV05C-650S/5 | ||
| CVBA-500BC/8-BEA-L | 500 | 5 | 8 | 49 | 55 | 148 | CV05C-500W/8 | ||
| CVBA-500BC/8-EKA-L | 500 | 5 | 8 | 65 | 54 | 153,8 | CV05C-500WO/5 | ||
| CVBA-500CC/7-BEA-L | 500 | 5 | 7 | 49 | 54 | 148,4 | CV05C-500D/7 | ||
| CVBA-500AC/5-BDA-M | 500 | 5 | 5 | 49 | 55 | 148 | CV05C-500S/5 | ||
| CVBA-500AC/5-BFA-M | 500 | 5 | 5 | 49 | 55 | 148 | CV05C-500N/5 | CSV1-500-0005 | UC-500/5/45J |
| CVBA-500AC/5-BFH-LM | 500 | 5 | 5 | 49 | 55 | 148 | |||
| CVBA-500BC/5-DEA-BL | 500 | 5 | 5 | 49 | 58,7 | 147,1 | CV05C-500XIH/5 | ||
| CVBA-500BC/5-DEA-C | 500 | 5 | 5 | 49 | 58,7 | 147,1 | |||
| CVBA-500BC/5-DEA-CF | 500 | 5 | 5 | 49 | 587 | 1471 | |||
| CVBA-500BC/5-DEA-L | 500 | 5 | 5 | 49 | 55 | 148 | CV05C-500X/5 | ||
| CVBA-500CC/5-BEK-L | 500 | 5 | 5 | 49 | 54 | 149 | CV05C-500Y/5 | ||
| CVBA-250AC/15-BEAA-L | 250 | 5 | 15 | 51 | 58,7 | 148,3 | CV1C-250JN/15 | ||
| CVBA-250AC/15-BEA-L | 250 | 5 | 15 | 51 | 58,7 | 148,3 | CV1C-250J/15 | ||
| CVBA-250AC/15-CSP-L | 250 | 5 | 15 | 54 | 143,3 | CV1C-250JP/15 | |||
| CVBA-250AC/15-DEA-BL | 250 | 5 | 15 | 51 | 54 | 149,9 | CV1C-250JIH/15 | ||
| CVBA-250AC/15-DEA-C | 250 | 5 | 15 | 51 | 54 | 149,9 | |||
| CVBA-250AC/15-DEA-CF | 250 | 5 | 15 | 51 | 54 | 149,9 | |||
| CVBA-170AC/15-BFA-M | 170 | 5 | 15 | 58 | 55 | 148 | CV1C-170E/15 | ||
| CVBA-170BC/15-BCF-L | 170 | 5 | 15 | 65 | 54 | 146,9 | CV1C-170FA/15 | ||
| CVBA-170BC/15-BEA-BL | 170 | 5 | 15 | 58 | 55 | 148 | CV1C-170FIH/15 | ||
| CVBA-170BC/15-BEA-CL | 170 | 5 | 15 | 58 | 55 | 148 | CV1C-170FE/15 | ||
| CVBA-170BC/15-BEA-L | 170 | 5 | 15 | 58 | 55 | 148 | CV1C-170F/15 | ||
| CVBA-170BC/15-BEH-L | 170 | 5 | 15 | 58 | 55 | 148 | |||
| CVBA-170BC/15-BEK-BL | 170 | 5 | 15 | 58 | 55 | 148 | CV1C-170GIH/15 | ||
| CVBA-170BC/15-BEK-L | 170 | 5 | 15 | 58 | 55 | 148 | CV1C-170G/15 | ||
| CVBA-170BC/15-BUA-L | 170 | 5 | 15 | 58 | 55 | 148 | CV1C-170FL/15 | ||
| CVBA-170BC/15-EKA-L | 170 | 5 | 15 | 65 | 54 | 152,3 | CV1C-170FO/15 | ||
| The information above is not to be used for design purposes. For detailed information refer to the
individual datasheet, available on our website www.wvs-tech.de or from our local representative. |
