Basi-Con

Product overview ↗
Basi-Con Series Comet-Logo
Swiss Quality
Variable Vacuum Capacitor


Widely Used - Low Torque - Low Cost


  •    170 pF / 15 kV
  •    250 pF / 15 kV
  •    500 pF /   5 kV
  •    650 pF /   5 kV
  •  1000 pF /   5 kV
  •  1400 pF /   3 kV
 Most popular and widely used series means greatest variety of options (C-Curve, Cmax, Cmin) and shortest lead times - Various slopes for C-variation aviable - Low torque or linear drive allow for very high tuning speed.


Variable Vakuum Kondensatoren Basi-Con Feautures:
Current (rms max) 58 A
Voltage (peak test) 15 kV
Body size (dia x length) 54 x 97 mm
Overall length < 148 mm
Low torque (typ.) 0,15 Nm
High tuning speed

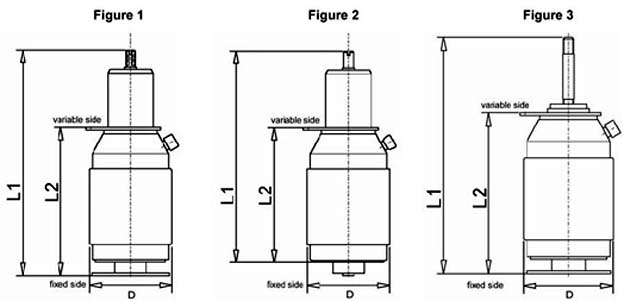

Skizzen von Basi-Con Vakuumkondensatoren

datailed chart
Type Designation Capacitance Capacitance UPT Current [A] Ø Total
Height		 alternative type names
(order number) Cmax [pF] Cmin [pF] Test [kV] Imax
(13,56MHz)		 [mm] [mm] Comet Jennings Jennings
CVBA-1400AC/3-BEA-L 1400 8 3 47 51 147,6 CV03C-1400H/3
CVBA-1000AC/5-BCF-L 1000 50 5 57 54 146,9 CV05C-1000SA/5
CVBA-1000AC/5-BEA-BL 1000 50 5 49 58,7 149,6 CV05C-1000SIH/5
CVBA-1000AC/5-BEA-L 1000 50 5 49 58,7 147,6 CV05C-1000S/5
CVBA-1000AC/5-DEA-BL 1000 50 5 57 58,7 147,1 CV05C-1000ZIH/5
CVBA-1000BC/3-BEA-L 1000 5 3 48 54 149 CV03C-1000E/3
CVBA-650AC/5-BEA 650 5 5 49 58,7 152,6 CV05C-650T/5
CVBA-650BC/5-BEA-L 650 5 5 48 58,7 147,6 CV05C-650S/5
CVBA-500BC/8-BEA-L 500 5 8 49 55 148 CV05C-500W/8
CVBA-500BC/8-EKA-L 500 5 8 65 54 153,8 CV05C-500WO/5
CVBA-500CC/7-BEA-L 500 5 7 49 54 148,4 CV05C-500D/7
CVBA-500AC/5-BDA-M 500 5 5 49 55 148 CV05C-500S/5
CVBA-500AC/5-BFA-M 500 5 5 49 55 148 CV05C-500N/5 CSV1-500-0005 UC-500/5/45J
CVBA-500AC/5-BFH-LM 500 5 5 49 55 148
CVBA-500BC/5-DEA-BL 500 5 5 49 58,7 147,1 CV05C-500XIH/5
CVBA-500BC/5-DEA-C 500 5 5 49 58,7 147,1
CVBA-500BC/5-DEA-CF 500 5 5 49 587 1471
CVBA-500BC/5-DEA-L 500 5 5 49 55 148 CV05C-500X/5
CVBA-500CC/5-BEK-L 500 5 5 49 54 149 CV05C-500Y/5
CVBA-250AC/15-BEAA-L 250 5 15 51 58,7 148,3 CV1C-250JN/15
CVBA-250AC/15-BEA-L 250 5 15 51 58,7 148,3 CV1C-250J/15
CVBA-250AC/15-CSP-L 250 5 15   54 143,3 CV1C-250JP/15
CVBA-250AC/15-DEA-BL 250 5 15 51 54 149,9 CV1C-250JIH/15
CVBA-250AC/15-DEA-C 250 5 15 51 54 149,9
CVBA-250AC/15-DEA-CF 250 5 15 51 54 149,9
CVBA-170AC/15-BFA-M 170 5 15 58 55 148 CV1C-170E/15
CVBA-170BC/15-BCF-L 170 5 15 65 54 146,9 CV1C-170FA/15
CVBA-170BC/15-BEA-BL 170 5 15 58 55 148 CV1C-170FIH/15
CVBA-170BC/15-BEA-CL 170 5 15 58 55 148 CV1C-170FE/15
CVBA-170BC/15-BEA-L 170 5 15 58 55 148 CV1C-170F/15
CVBA-170BC/15-BEH-L 170 5 15 58 55 148
CVBA-170BC/15-BEK-BL 170 5 15 58 55 148 CV1C-170GIH/15
CVBA-170BC/15-BEK-L 170 5 15 58 55 148 CV1C-170G/15
CVBA-170BC/15-BUA-L 170 5 15 58 55 148 CV1C-170FL/15
CVBA-170BC/15-EKA-L 170 5 15 65 54 152,3 CV1C-170FO/15

The information above is not to be used for design purposes. For detailed information refer to the individual datasheet, available on our website www.wvs-tech.de or from our local representative.
