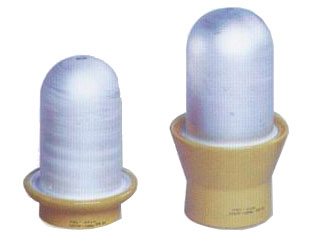

| Water-Cooled High Power Ceramic Capacitor | Series CCG10A |
| Type | Rated Capacitance | Rated Voltage (kV) |
Rated Reactive Power |
Max. Current |
Dimensions [mm] | Temperature Coefficient |
||
| (PF) | DC | HF (RMS) | (kVA) | (A) | D | H | (PPM/°C) | |
| CCG10A-1 | 2500 | 4,5 | 3,5 | 19 | 72 | 107 | -750 | |
| CCG10A-2 | 1000 | 14,5 | 10,5 | 25 | 74,5 | 140 | -750 | |
 |
 |
