High Voltage Ceramic Capacitor

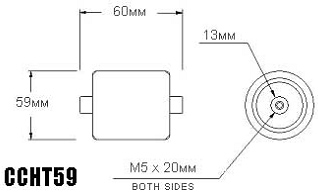

Series CCHT-59

Body N-750 TC Cap Udc Part No. Max. Current Rating (A)

pF kV 1 MHZ 10 MHZ 30 MHZ
50 25 CCHT594500 MA 3.2 14.1 16.8
75 25 CCHT594750 MA 3.7 15.8 17.9
100 25 CCHT594101 MA 3.9 17.4 20.2
130 25 CCHT594131 MA 4.1 18.0 24.1
150 25 CCHT594151 MA 4.1 18.1 25.6
200 25 CCHT594201 MA 5.3 18.2 30.0
250 25 CCHT594251 MA 6.5 18.3 35.5

NOTES:

1. Reactive power ratings (KVAR) can be calculated from given currents. Within given frequency limits the following equation applies:
KVAR=I²/(2*pi FC 10³)

2.Capacitor data is based on actual tests of current necessary to obtain a 30°C rise. In operation, capacitors may be driven to a 50°C rise over a 25°C ambient and still have a 10°C service factor.
