Vacuum Capacitors

COMET manufactures more than 300 basic types of vacuum capacitors, covering

Capacitance ranges from 3 to 6.600 pF
Current ratings up to 1.000 Amperes
Peak test voltages up to 90.000 Volts

For performance reasons, all COMET- capacitors are exclusively made with metal-ceramic envelopes. This permits them to withstand higher thermal and mechanical loads compared to glass types. Most of them are electrically and mechanically interchangeable or can be customized for existing applications. COMET-vacuum capacitors, within their technical specifications, will grant you excellent and long-lasting service.

Different types and executions of COMET-vacuum capacitors are made. Large numbers are available and a summation of basic categories and their most important specifications are shown in the list below. Differences between categories are in internal geometry, capacity, test voltage, and type of cooling.

Datasheets including outline drawing, capacitance and current curves are available for each type. (example at bottom of lists)

Variable Capacitor

Convection cooled

Category	Capacity range	Voltage range	Current at 16 MHz
CV03C-......	8 – 1400 pF	3 kV	up to 50 Arms
CV05C-......	3 – 4000 pF	3 – 8 kV	up to 88 Arms
CV1C-........	3 – 3000 pF	7.5 – 25 kV	up to 148 Arms
CV2C-........	8 – 2400 pF	25 – 40 kV	up to 133 Arms
CV3C-........	10 – 1600 pF	40 – 60 kV	up to 132 Arms
CV5C-........	15 – 150 pF	60 – 70 kV	up to 132 Arms
CV7C-........	20 – 320 pF	65 – 90 kV	up to 146 Arms
Air cooled
Category	Capacity range	Voltage range	Current at 16 MHz
CV1A-........	35 – 5000 pF	7.5 – 15 kV	up to 264 Arms
CV2A-........	15 – 2000 pF	25 – 40 kV	up to 337 Arms
CV3A-........	10 – 1600 pF	30 – 55 kV	up to 348 Arms
Water cooled
Category	Capacity range	Voltage range	Current at 16 MHz
CV05W-......	10 – 2000 pF	5 – 8 kV	up to 127 Arms
CV1W-........	12 – 6600 pF	7.5 – 25 kV	up to 593 Arms
CV2W-........	30 – 1200 pF	30 – 40 kV	up to 689 Arms
CV3W-........	10 – 2600 pF	40 – 50 kV	up to 877 Arms
CV4W-........	70 – 1600 pF	50 – 60 kV	up to 974 Arms
CV6W-........	60 – 800 pF	60 – 80 kV	up to 947 Arms
CV7W-........	15 – 300 pF	70 – 90 kV	up to 948 Arms

Fixed Capacitor

Convecetion cooled

Category

Capacity range

Voltage range

Current at 16 MHz

CF05C-

2000 – 3000 pF

3 – 5 kV

up to 87 Arms

CF1C-

250 – 3570 pF

7.5 – 25 kV

up to 203 Arms

CF2C-

12 – 2500 pF

25 – 40 kV

up to 270 Arms

CF3C-

6 – 2000 pF

40 – 60 kV

up to 282 Arms

CF5C

20 – 450 pF

60 – 70 kV

up to 286 Arms

Water cooled

Category

Capacity range

Voltage range

Current at 16 MHz

CF2W-

1500 – 2500 pF

25 – 35 kV

up to 522 Arms

CF3W-

200 – 2000 pF

45 – 55 kV

up to 522 Arms

CF5W-

200 – 450 pF

50 – 70 kV

up to 508 Arms

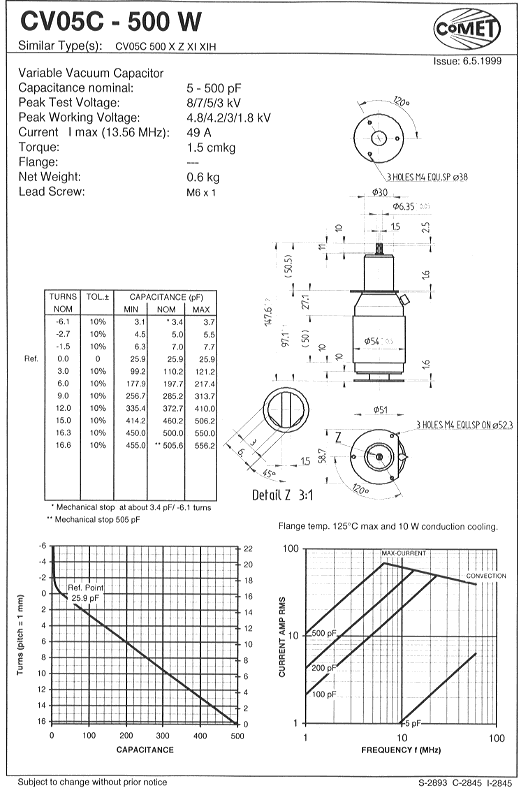

Example of a data sheet:
