CT 8

Product overview ↗
Ceramic Capacitor SERIES CT8

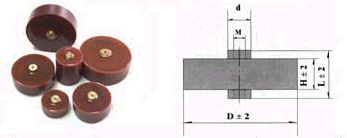

Ceramic Capacitor ct8-1 drawing + picture
CT8-1 Series
Capacitance DC-Voltage (kV) Dimensions (mm) Operating
pF Operating Test Charge & Discharge D H L M d Temp. °C
1000 20 30 15 32 18 22     -25°C to +85°C
1400 38 20 24
2200 50 12 25
3300 40 18 25 4 12
3800 45 16 24 4 12
5300 74 24 28
50 30 40 20 20 12 24 4 8
270 26 30 34
1000-1 42 18 28
1000-2 32 18 22
2000 50 21 28 4 12
2700 60 25 29
3300 50 18 28 4 12
3800 74 20 30
2700 35 52,50 30,00 74 30 36 4 12
140 40 60 30 20 33 41 4 8
200 26 34 38
820 38 27 31
1000 42 29 36 4 12
2000 60 29 33
3300 74 32 36
5600 80 24 31 4 12
570 45 67,50 30,00 36 24 32 4 12
1000 50 32 36 4 12
680 50 75 35 38 30 34
1000 35 32 36
2000 74 28 50 4 12
7000 105 36 45
