Vacuum Relays

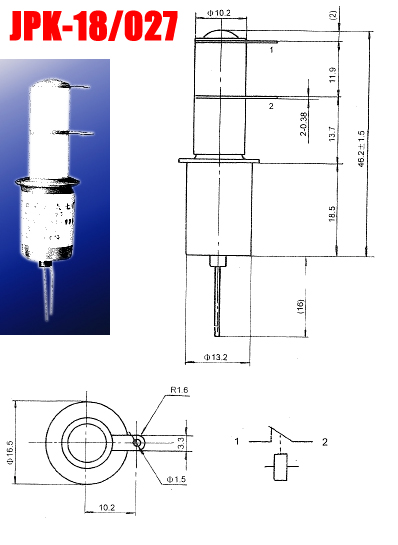

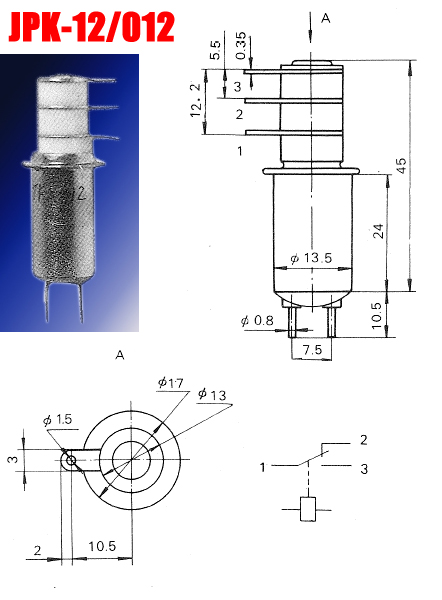

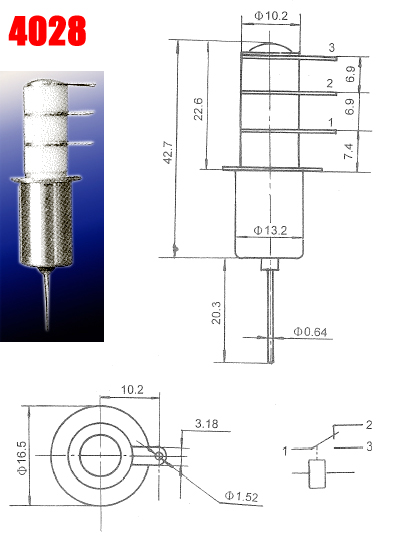

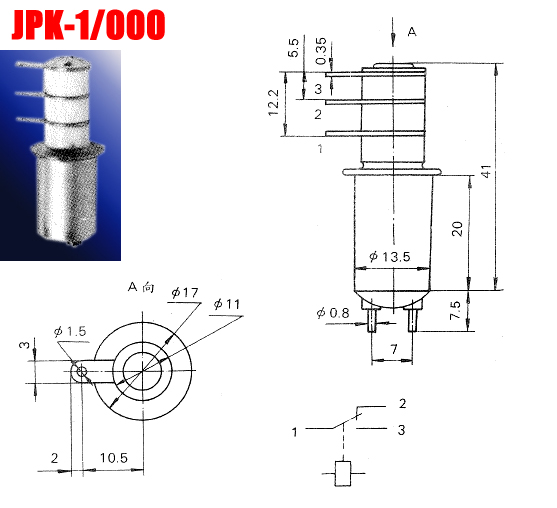

Series JPK-1/000, JPK-12/012, 4028, JPK-18/027

Contact Parameter

Code		4000	4012	4028	4029
Specification No		JPK-1/000	JPK-12/012	----	JPK-18/027
Contact Configuration		1Z		1Z	1D
Test Voltage (DC or AC 50Hz Peak)kV		4		6	8
Reated Working Voltage (Peak) kV	DC or AC 50H	2		5	7,5
	AC 2,5 MHz	2		4,5	7,5
	AC 16 MHz	2		3,5	7
	AC 32 MHz	2		2,8	5
Rated Current (Carry, RMS) A	DC or AC 50Hz	8		15	12
	AC 2,5 MHz	6		12	10
	AC 16 MHz	4		8	5
	AC 32 MHz	2		6	2
Contact Resistance (Max.) Ω		0,05		0,05	0,05
Capacitance pF	Between Open Contacts	1,6	3	1,6	1,6
	Between Contact and Envelope	2	3	2	2
Coil Parameter
Rated Coil Voltage (DC) V		26,5	27	26,5	26,5
DC Coil Resistance Ω ±10%		890	630	920	920
Pull-in Voltage (25&degC, Max.) V		16	18	16	16
Dropout Voltage (Over range of Temp.) V		1~10	1~10	1~10	1~10
Operate Time (Max.) ms		10	10	10	10
Release Time (Max.) ms		10	10	10	12
Insulation Property
Insulation Resitance, Min. MΩ		1000		1000	1000
Dielectric Withstand Voltage (AC 50Hz RMS) kV	Between Open Contacts	4		6	8
	Between Contact and Envelope	4		6	8
	Between Coil and Envelope	0,5		0,5	0,5
Ambient Adaptability
Range of Temp. &degC		-55~85		-55~1,25
Shock. (11 ms 1/2 Sine) m/s²(g)		294(30)		30	294(30)
HF Vibration m/s²(g), Hz		98(10), 55~2000		98(10), 10-2000	98(98), 55-1000
Mounting Form		Optional
Weight and Life
Weight (g)		22		22	26
Life (Mechanical cycles) 10⁶		1		2	2
