| Vacuum Relays |
| JPK-21/028, JPK-13/013, Code-4030, Code-4027 |
| Contact Parameter | |||||
 |
 |
 |
 |
||

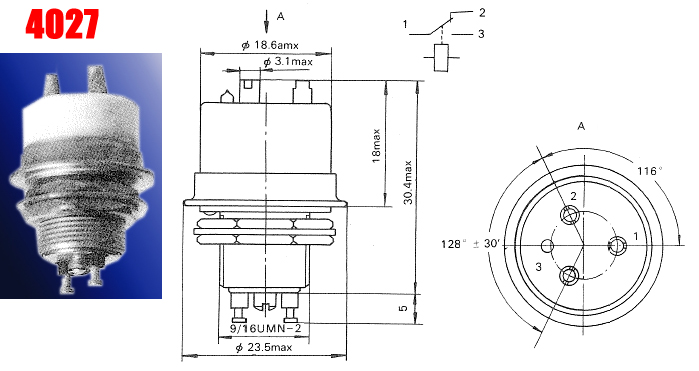

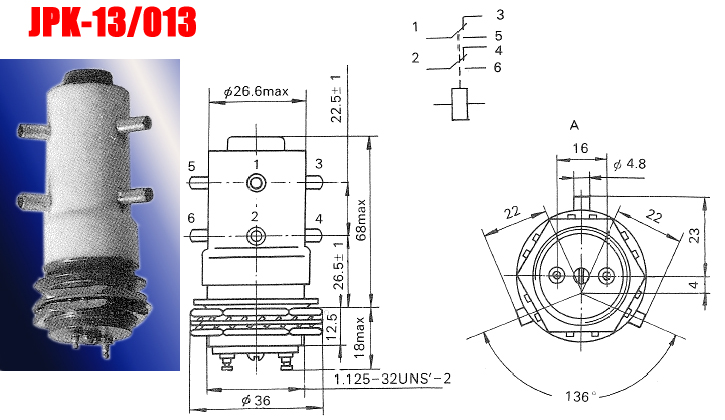

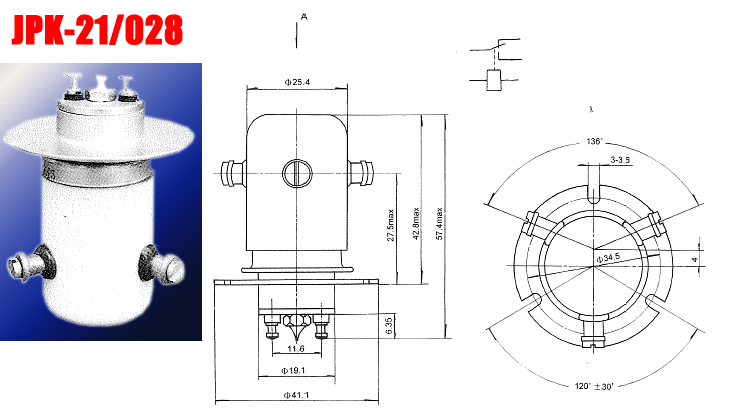

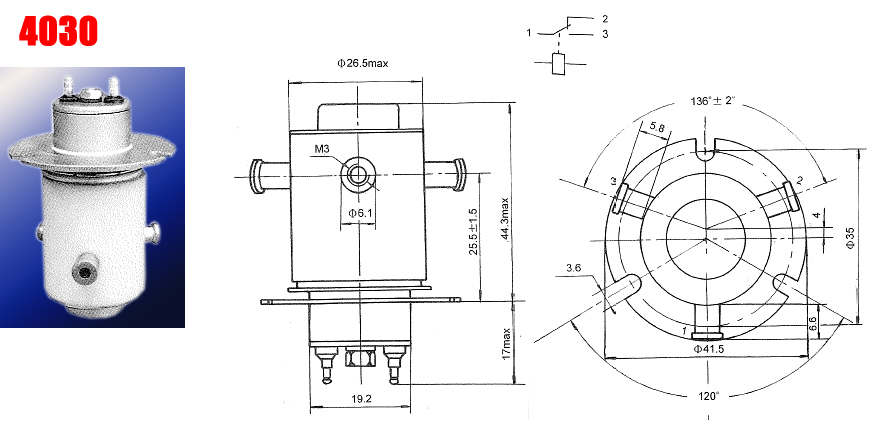

| Code | 4030 | RN 4.654, 028 | 4013 | 4027 | |
| Specification No | ---- | JPK-21/028 | JPK-13/013 | ---- | |
| Contact Configuration | 1Z | 1Z | 2Z | 1Z | |
| Test Voltage (DC or AC 50Hz Peak)kV |
15 | 17 | 15 | 5 | |
| Reated Working Voltage (Peak) kV |
DC or AC 50H | 12 | 15 | 12 | 3,5 |
| AC 2,5 MHz | ---- | ---- | 10 | 2,5 | |
| AC 16 MHz | ---- | ---- | 8 | 2 | |
| AC 32 MHz | ---- | ---- | ---- | 1 | |
| Rated Current (Carry, RMS) A |
DC or AC 50Hz | 30 | 30 | 50 | 18 |
| AC 2,5 MHz | ---- | ---- | 30 | 14 | |
| AC 16 MHz | ---- | ---- | 17,5 | 9 | |
| AC 32 MHz | ---- | ---- | 10 | 7 | |
| Contact Resistance (Max.) Ω | 0,025 | 0,025 | 0,12 | 0,01 | |
| Capacitance pF |
Between Open Contacts |
0,5 | 0,5 | 1 | 2 |
| Between Contact and Envelope |
1 | 1 | 2,5 | 2,5 | |
| Coil Parameter | |||||
| Rated Coil Voltage (DC) V | 26,5 | 12 | 26,5 | 26,5 | |
| DC Coil Resistance Ω ±10% | 270 | 48 | 285 | 335 | |
| Pull-in Voltage (25°C, Max.) V | 16 | 8 | 16 | 16 | |
| Dropout Voltage (Over range of Temp.) V |
1~10 | 0,5~5 | 1~10 | 1~10 | |
| Operate Time (Max.) ms | 15 | 15 | 20 | 8 | |
| Release Time (Max.) ms | 9 | 9 | 8 | 8 | |
| Insulation Property | |||||
| Insulation Resitance, Min. MΩ | 1000 | 1000 | 1000 | 1000 | |
| Dielectric Withstand Voltage (AC 50Hz RMS) kV |
Between Open Contacts |
15 | 17 | 15 | 5 |
| Between Contact and Envelope |
15 | 17 | 15 | 5 | |
| Between Coil and Envelope |
0,5 | 1 | 0,5 | 0,5 | |
| Ambient Adaptability | |||||
| Range of Temp. °C | -55~125 | -55~125 | -55~125 | -55~125 | |
| Shock. (11 ms 1/2 Sine) m/s2(g) |
50 | 50 | 147(15) | 490(50) | |
| HF Vibration m/s2(g), Hz |
98(10),55~500 | 55-500 | 98(10),55-2000 | 98(10),55-2000 | |
| Mounting Form | Optional | Flange | Optional | Optional | |
| Weight and Life | |||||
| Weight (g) | 85 | 85 | 160 | 29 | |
| Life (Mechanical cycles) 106 | 1 | 1 | 1 | 2 | |
