Vacuum Relays

Series JPK-3/... - JPK-5/...

Contact Parameter

Code		4002	4003	4004

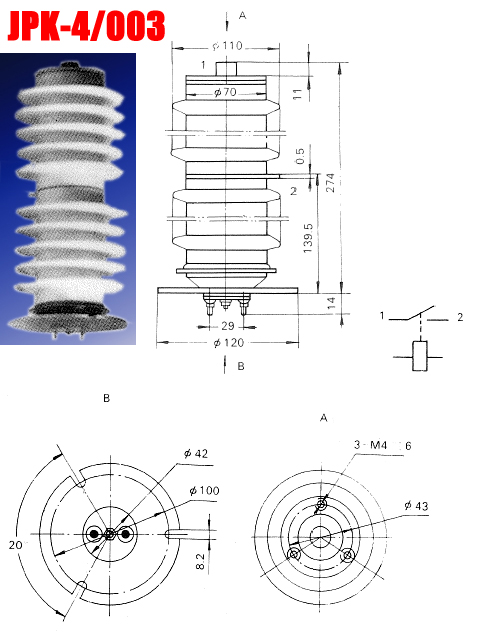

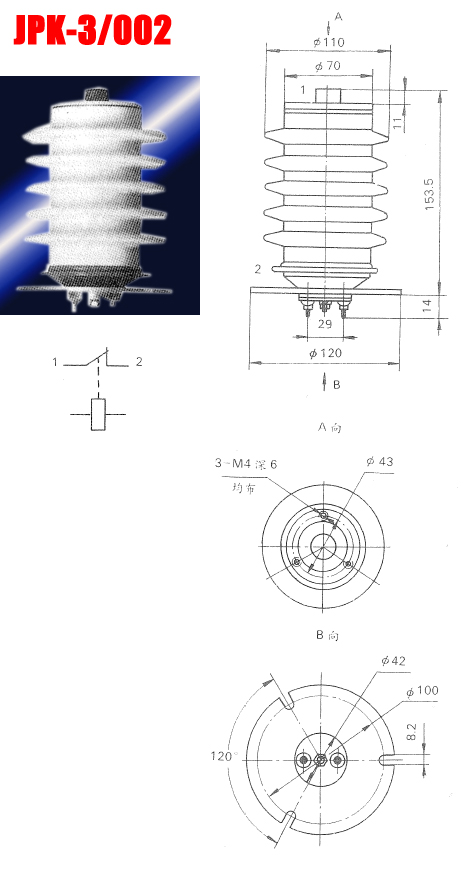

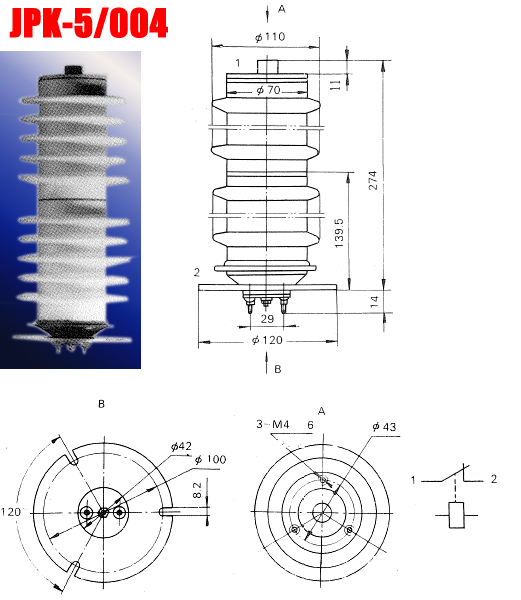

Specification No		JPK-3/002	JPK-4/003	JPK-5/004
Contact Configuration		1D	1H	1D
Test Voltage (DC or AC 50Hz Peak)kV		50	50	100
Reated Working Voltage (Peak) kV	DC or AC 50H	40	40	80
	AC 2,5 MHz	----	----	----
	AC 16 MHz	----	----	----
	AC 32 MHz	----	----	----
Rated Current (Carry, RMS) A	DC or AC 50Hz	----	----	----
	AC 2,5 MHz	----	----	----
	AC 16 MHz	----	----	----
	AC 32 MHz	----	----	----
Contact Resistance (Max.) Ω		0,02	0,02	0,02
Capacitance pF	Between Open Contacts	----	----	----
Capacitance pF	Between Contact and Envelope	----	----	----
Coil Parameter
Rated Coil Voltage (DC) V		24	24	24
DC Coil Resistance Ω ±10%		120	120	120
Pull-in Voltage (25&degC, Max.) V		17	17	17
Dropout Voltage (Over range of Temp.) V		1~10	1~10	1~10
Operate Time (Max.) ms		----	50	----
Release Time (Max.) ms		50	----	50
Insulation Property
Insulation Resitance, Min. MΩ		1000	1000	1000
Dielectric Withstand Voltage (AC 50Hz RMS) kV	Between Open Contacts	70	70	110
	Between Contact and Envelope	70	70	110
	Between Coil and Envelope	2	2	2
Ambient Adaptability
Range of Temp. &degC		-55~85	-55~85	-55~85
Shock. (11 ms 1/2 Sine) m/s²(g)		147(15)	147(15)	147(15)
HF Vibration m/s²(g), Hz		24,5(2,5) 55~500	24,5(2,5) 55~500	24,5(2,5) 55~500
Mounting Form		Vertical
Weight and Life
Weight (kg)		2,5	3,8	3,8
Life (Mechanical cycles) 10⁴		2	2	2
