| Vacuum Relays |

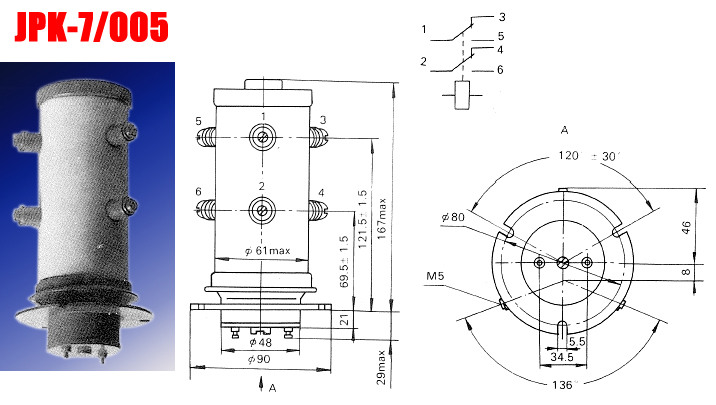

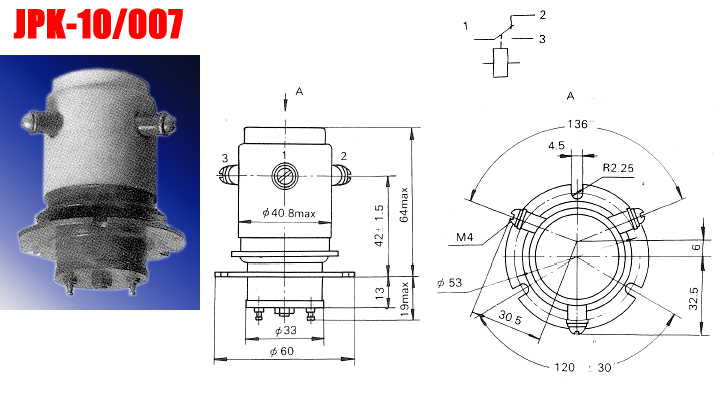

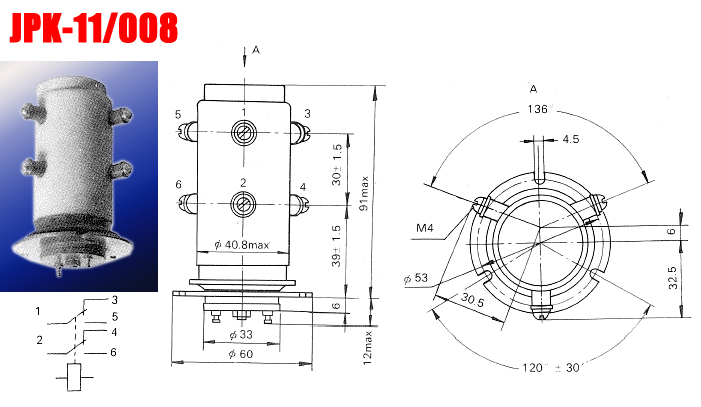

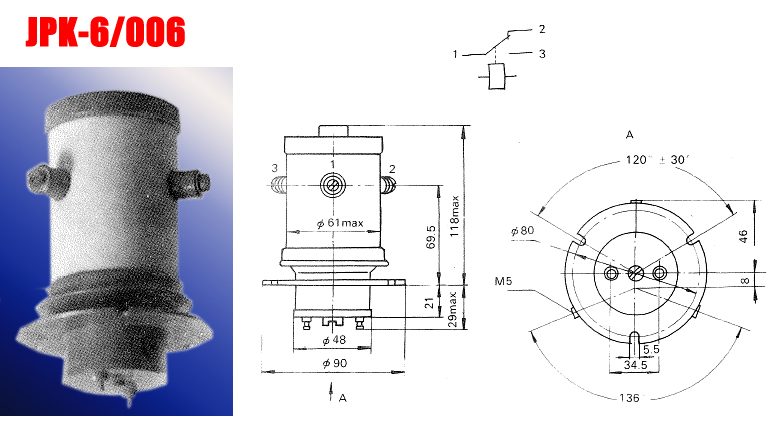

| JPK-6/006, JPK-7/005, JPK-10/007, JPK-11/008 |
| Contact Parameter | |||||
 |
 |
 |
 |
||
| Code | 4006 | 4005 | 4007 | 4008 | |
| Specification No | JPK-6/006 | JPK-7/005 | JPK-10/007 | JPK-11/008 | |
| Contact Configuration | 1Z | 2Z | 1Z | 2Z | |
| Test Voltage (DC or AC 50Hz Peak)kV |
25 | 25 | 20 | 20 | |
| Reated Working Voltage (Peak) kV |
DC or AC 50H | 20 | 20 | 15 | 15 |
| AC 2,5 MHz | 15 | 15 | 13 | 13 | |
| AC 16 MHz | 10 | 10 | 10 | 10 | |
| AC 32 MHz | ---- | ---- | ---- | ---- | |
| Rated Current (Carry, RMS) A |
DC or AC 50Hz | 150 | 150 | 75 | 75 |
| AC 2,5 MHz | 70 | 70 | 35 | 35 | |
| AC 16 MHz | 45 | 45 | 22 | 22 | |
| AC 32 MHz | ---- | ---- | ---- | ---- | |
| Contact Resistance (Max.) Ω | 0,005 | 0,005 | 0,01 | 0,01 | |
| Capacitance pF |
Between Open Contacts |
5 | 5 | 3 | 3 |
| Between Contact and Envelope |
5 | 5 | 3,5 | 3,5 | |
| Coil Parameter | |||||
| Rated Coil Voltage (DC) V | 24 | 24 | 24 | 27 | |
| DC Coil Resistance Ω ±10% | 60 | 60 | 190 | 240 | |
| Pull-in Voltage (25°C, Max.) V | 16 | 16 | 16 | 16 | |
| Dropout Voltage (Over range of Temp.) V |
1~10 | 1~10 | 1~10 | 1~10 | |
| Operate Time (Max.) ms | 100 | 100 | 30 | 30 | |
| Release Time (Max.) ms | 15 | 15 | 8 | 10 | |
| Insulation Property | |||||
| Insulation Resitance, Min. MΩ | 1000 | 1000 | 1000 | 1000 | |
| Dielectric Withstand Voltage (AC 50Hz RMS) kV |
Between Open Contacts |
25 | 25 | 20 | 20 |
| Between Contact and Envelope |
25 | 25 | 20 | 20 | |
| Between Coil and Envelope |
1 | 1 | 1 | 1 | |
| Ambient Adaptability | |||||
| Range of Temp. °C | -55~125 | -55~125 | -55~125 | -55~125 | |
| Shock. (11 ms 1/2 Sine) m/s2(g) |
294(30) | 294(30) | 490(50) | 147(15) | |
| HF Vibration m/s2(g), Hz |
10~55 | 10~55 | 55~500 | 55~300 | |
| Mounting Form | Optional | Vertical | Optional | Optional | |
| Weight and Life | |||||
| Weight (g) | 1400 | 1600 | 300 | 380 | |
| Life (Mechanical cycles) 106 | 1 | 1 | 1 | 1 | |
