| LAMi-Cap Series |  Swiss Quality |
| Fixed Vacuum Capacitor |
High Power
 |

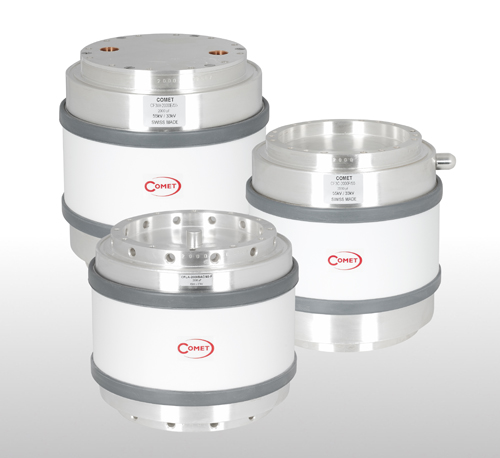

LAMi-Cap High power applications - High voltage at high capacitance - Available with water cooling Designed for high power MW / SW Broadcast applications - Used in broadcast transmitters from 500 to 1000 kW - Auxiliary water cooling allows high current capability - High voltage realtive to capacitance - Low inductance results in high self resonance frequency. Product Brochure |
Outline Drawings   |
| Type Designation | Capacitance | UPT | Current [A] | Ø | Total Height |
alternative type names | ||
| (order number) | Cmax | Test | Imax (13,56MHz) |
[mm] | [mm] | Comet | Jennings | Jennings |
| Body-A | ||||||||
| CFLA-2000ABC/55-PC-G | 2000 | 55 | 260 | 214 | 212 | |||
| CFLA-2000ABW/55-PC-GR | 2000 | 55 | 526 | 214 | 220 | |||
| Body-B | ||||||||
| CFLA-2000BAC/45-PC-G | 2000 | 45 | 258 | 214 | 183 | CF3C-2000E/45 | CFHM-2000 | UFC-2000/20/200J |
