| Lumi-Con Series |  Swiss Quality |
| Variable Vacuum Capacitor |
High Capacity
 |

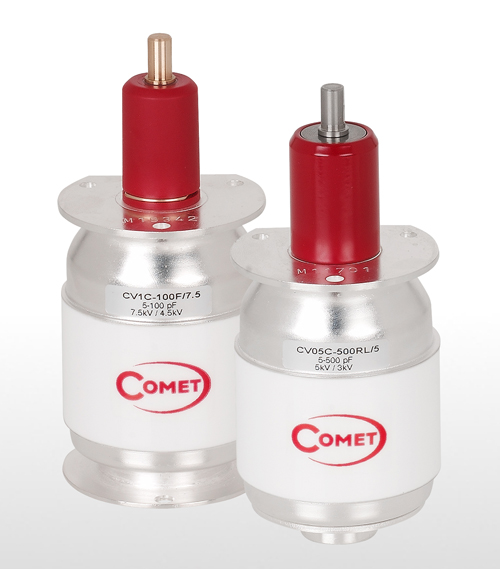

Lumi-Con Replaces old glass capacitors - High self resonance frequency - Compact and rugged design Ceramic envelope replaces glass envelopes and allows higher terminal and mechanical loads - High self resonance frequency - Compact and rugged design - Low torque - Integrated flanges for an easy installation - Widely used in different semiconductor applications - Optional antimagnetic lead screws available for research or medical applications like nuclear MR imaging systems. Product Brochure |

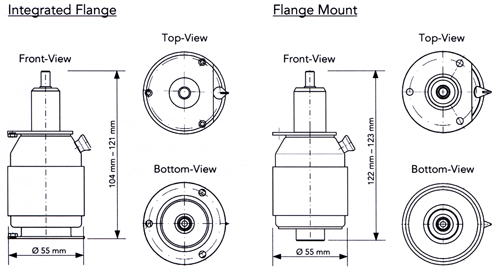

Outline Drawings |
| Type Designation | Capacitance | Capacitance | UPT | Current [A] | Ø | Total Height |
alternative type names | ||
| (order number) | Cmax [pF] | Cmin [pF] | Test [kV] | Imax (13,56MHz) |
[mm] | [mm] | Comet | Jennings | Jennings |
| CVLU-500AC/5-BAHG-M | 500 | 5 | 5 | 53 | 55 | 122 | CV05C-500R/5 | UCSL-500-5S | |
| CVLU-500AC/5-BCHG | 500 | 5 | 5 | 58 | 54 | 122,1 | |||
| CVLU-500AC/5-BDH-M | 500 | 5 | 5 | 59 | 54 | 122,1 | CV05C-500RL/5 | ||
| CVLU-500AC/5-EKH-M | 500 | 5 | 5 | 58 | 54 | 122,1 | CV05C-500RLO/5 | ||
| CVLU-500AC/5-ZLHG-M | 500 | 5 | 5 | 51 | 55 | 144,3 | CV05C-500K/5 | ||
| CVLU-500BC/5-BAHG-L | 500 | 5 | 5 | 51 | 54 | 122,2 | CV05C-500J/5 | ||
| CVLU-250AC/5-BAAGL | 250 | 5 | 5 | 45 | 55 | 104 | CV05C-250L/5 | UCSLN-250-5S | |
| CVLU-250AC/5-BAAL | 250 | 4 | 5 | 56 | 55 | 104 | CV05C-250H/5 | UCSL-250-5S | UC-250/5/40J |
| CVLU-100AC/15-BAHGL | 100 | 5 | 15 | 54 | 55 | 120 | CV1C-100M/15 | ||
| CVLU-100AC/15-BAHG-L | 100 | 5 | 15 | 61 | 54 | 120 | CV1C-100M/15 | ||
| CVLU-100AC/15-BAHG-L1 | 100 | 5 | 15 | 54 | 54 | 118,5 | CV1C-100G/15 | ||
| CVLU-100AC/15-BCHG | 100 | 5 | 15 | 54 | 54 | 119,8 | CV1C-100V/15 | GCSN-100-15S | |
| CVLU-100AC/15-BDHL | 100 | 5 | 15 | 61 | 54 | 120,5 | CV1C-100GL/15 | ||
| CVLU-100AC/15-EKHL | 100 | 5 | 15 | 61 | 54 | 122 | CV1C-100FO/15 | ||
| CVLU-100AC/15-ZLHGL | 100 | 5 | 15 | 61 | 55 | 142,3 | CV1C-100K/15 | GCS-100-15S | |
| CVLU-55AC/15-BAHG-L | 55 | 5 | 15 | 34 | 55 | 120 | CV1C-55E/15 | GCS-55-15S | |
| The information above is not to be used for design purposes. For detailed information refer to the
individual datasheet, available on our website www.wvs-tech.de or from our local representative. |
