| Variabler Vakuum Kondensator |
Low Cost — Low Torque — Wide Tuning Range
|
 |
 |
Low cost version of Dual-Con series without double bearing — Small Cmax values — Low torque allows for very high tuning speed – Tuning range up to 100:1 (Cmax to Cmin). |

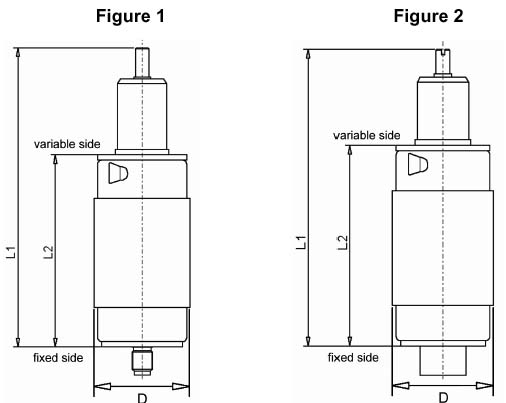

| With Flange-Mount | Without Flange-Mount |
 |
Eigenschaften: | |
| Strom (max effekt.) | 64 A | |
| Spitzenspannung | 15 kV | |
| Abmessung (Durchmesser x Länge) |
45 x 90 mm | |
| Gesamtlänge | < 145 mm | |
| geringe Drehzahl (typ.) | 0,15 Nm | |
| hohe Abstimmungsgeschwindigkeit | ||
| detaillierte Tabelle |
| Typ | Kapazität | Kapazität | UPT | Strom [A] | Ø | Höhe | alternative Bezeichnung |
| Bestellungsnummer | Cmax [pF] | Cmin [pF] | Test [kV] | Imax (13,56MHz) |
[mm] | [mm] | Comet |
| CVMO-1000AC/3-BAF | 1000 | 8 | 3 | 64 | 45,2 | 153,3 | CV03C-1000S/3 |
| CVMO-1000AC/3-EKF | 1000 | 8 | 3 | 51 | 45,2 | 159,6 | CV03C-1000SO/3 |
| CVMO-500BC/5-BALG-M | 500 | 5 | 5 | 51 | 45,2 | 153 | CV05C-500L/5 |
| CVMO-250AC/5-BFA-M | 250 | 5 | 5 | 53 | 45,2 | 145,9 | CV05C-250G/5 |
| CVMO-150AC/5-BFA-M | 150 | 70 | 5 | 34 | 45,2 | 145,9 | CV05C-150E/5 |
| CVMO-150BC/5-DEA-M | 150 | 70 | 5 | 34 | 45,2 | 142,5 | CV05C-150G/5 |
| CVMO-100AC/5-BFA-M | 100 | 5 | 5 | 22 | 45,2 | 145,9 | CV05C-100F/5 |
| CVMO-80AC/15-BFA-M | 80 | 5 | 15 | 34 | 45,2 | 145,9 | CV1C-80E/15 |
| CVMO-60AC/15-BFA-M | 60 | 5 | 15 | 34 | 45,2 | 146,9 | CV1C-60G/15 |
| CVMO-50AC/15-BFA-M | 50 | 5 | 15 | 34 | 45,2 | 146,9 | CV1C-50G/15 |
| CVMO-45AC/15-BFA-M | 45 | 5 | 15 | 30 | 45,2 | 145,9 | CV1C-45E/15 |
| CVMO-40AC/15-BFA-M | 40 | 5 | 15 | 27 | 45,2 | 146,9 | CV1C-40G/15 |
| The information above is not to be used for design purposes. For detailed information refer to the individual datasheet, available on our website www.wvs-tech.de or from our local representative. |
