Mono-Con Series

Swiss Quality

Variable Vacuum Capacitor

Low Cost — Low Torque — Wide Tuning Range

40 pF / 15 kV
50 pF / 15 kV
60 pF / 15 kV
80 pF / 15 kV
100 pF / 5 kV
500 pF / 5 kV
1000 pF / 3 kV

Low cost version of Dual-Con series without double bearing — Small Cmax values — Low torque allows for very high tuning speed – Tuning range up to 100:1 (Cmax to Cmin).

With Flange-Mount

Without Flange-Mount

Feautures:

Current (rms max)

64 A

Voltage (peak test)

15 kV

Body size (dia x length)

45 x 90 mm

Overall length

< 145 mm

Low torque (typ.)

0,15 Nm

High tuning speed

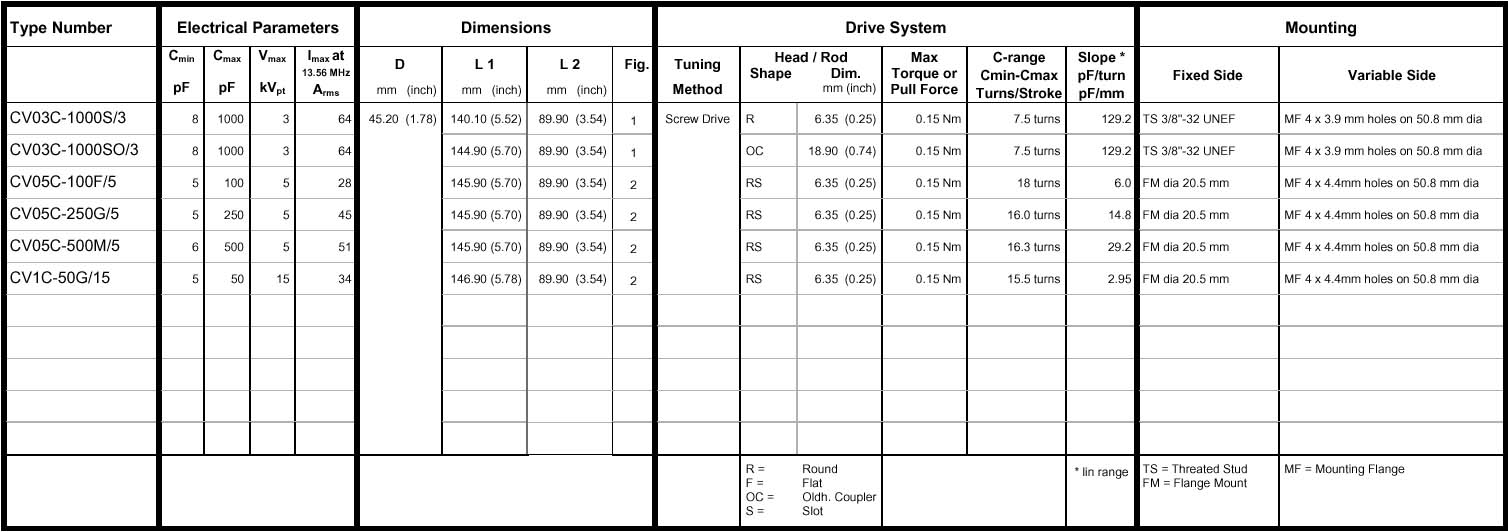

detailed chart

Type Designation	Capacitance	Capacitance	U_PT	Current [A]	Ø	Total Height	alternative type names
(order number)	C_max [pF]	C_min [pF]	Test [kV]	Imax (13,56MHz)	[mm]	[mm]	Comet
CVMO-1000AC/3-EKF	1000	8	3	51	45,2	159,6	CV03C-1000SO/3
CVMO-500BC/5-BALG-M	500	5	5	51	45,2	153	CV05C-500L/5
CVMO-250AC/5-BFA-M	250	5	5	53	45,2	145,9	CV05C-250G/5
CVMO-150AC/5-BFA-M	150	70	5	34	45,2	145,9	CV05C-150E/5
CVMO-150BC/5-DEA-M	150	70	5	34	45,2	142,5	CV05C-150G/5
CVMO-100AC/5-BFA-M	100	5	5	22	45,2	145,9	CV05C-100F/5
CVMO-80AC/15-BFA-M	80	5	15	34	45,2	145,9	CV1C-80E/15
CVMO-60AC/15-BFA-M	60	5	15	34	45,2	146,9	CV1C-60G/15
CVMO-50AC/15-BFA-M	50	5	15	34	45,2	146,9	CV1C-50G/15
CVMO-45AC/15-BFA-M	45	5	15	30	45,2	145,9	CV1C-45E/15
CVMO-40AC/15-BFA-M	40	5	15	27	45,2	146,9	CV1C-40G/15

The information above is not to be used for design purposes. For detailed information refer to the individual datasheet, available on our website www.wvs-tech.de or from our local representative.
