NAMi-Cap

Product overview ↗
NAMi-Cap Serie Comet-Logo
Swiss Quality
Fixe Vacuum Capacitors

High Power

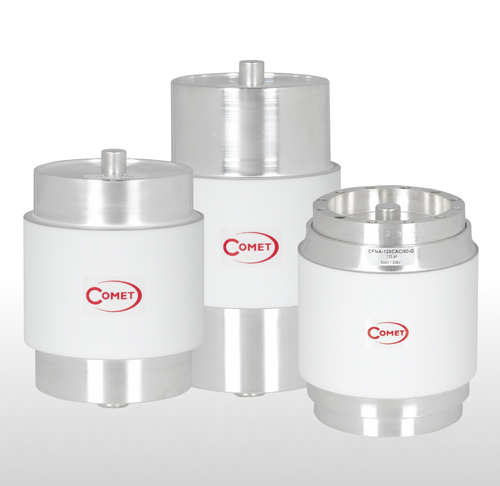

nami-cap - Drauf klicken um zu vergrößern NAMi-Cap
Medium power applications - Small size relative to voltage - Wide range of capacitance and value Designed for typical AM / MW Broadcast and Industrial applications - Small size relative to the voltage level - Wide range of capacitanceand voltage - Easy to install through a simple flange mount system - Wide variety of applications for broadcast and communication transmitters, antenna network systems, output-filters, couple-capacitors, industrial RF generators and fusion generators - Low inductance results in high self resonance frequency.

Product Brochure
  Outline Drawings
Typ ATyp BTyp CTyp D

Type Designation Capacitance Voltage Peak Current [A] Ø Total
Height		 alternative type names
(order number) Cmax [pF] Test [kV] Imax
(13,56MHz)		 [mm] [mm] Comet Jennings Jennings
Body-A
CFNA-1000AAC/40-KB-G 1000 40 138 116 180 CF2C-1000G/40
CFNA-1000ABC/40-QC-G 1000 40 149 116 170 CF2C-1000H/40
CFNA-750AAC/40-KB-G 750 40 138 116 180 CF2C-750E/40
CFNA-500AAC/40-EA-G 500 40 138 116 180 CF2C-500F/40
CFNA-500AAC/40-KB-G 500 40 138 116 180 CF2C-500E/40
CFNA-400AAC/40-KB-G 400 40 193 114 182 CF2C-400E/40
CFNA-350AAC/50-QC-G 350 50 190 116 170 CF3C-350E/50
CFNA-200AAC/40-KB-G 200 40 248 114 165,5 CF2C-200G/40
Body-B
CFNA-1000BAC/40-KB-G 1000 40 173 116 230 CF2C-1000E/40
CFNA-1000BAC/40-MA-G 1000 40 173 116 230 CF2C-1000F/40 MLC-1000-30
CFNA-750BAC/40-MA-G 750 40 173 116 230 CF2C-750F/40 MLC-750-30
CFNA-500BAC/40-MA-G 500 40 173 116 230 CF2C-500G/40 MLC-500-30S
Body-C
CFNA-300CAC/60-GC-G 300 60 210 116 137 CF3C-300E/60 CFHD-300
CFNA-300CBC/60-GC-G 300 60 210 116 137 CF3C-300F/60
CFNA-200CAC/60-GC-G 200 60 210 116 137 CF3C-200E/60 CFHD-200-50 UFC-200/30/200J
CFNA-150CAC/60-GC-G 150 60 207 116 137 CF3C-150E/60
CFNA-125CAC/60-GC-G 125 60 210 116 137 CF3C-125E/60 CFHD-125
Body-D
CFNA-200DAC/70-CA-G 200 70 138 116 196 CF5C-200F/70
CFNA-100DAC/70-CA-G 100 70 117 116 196 CF5C-100E/70
CFNA-24DAC/70-CA 24 70 76 116 196 CF5C-24E/70
CFNA-20DAC/70-CA 20 70 63 116 196 CF5C-20E/70
