| SAMi-Cap Series |  Swiss Quality |
| Fixed Vacuum Capacitors |
High Power
 |

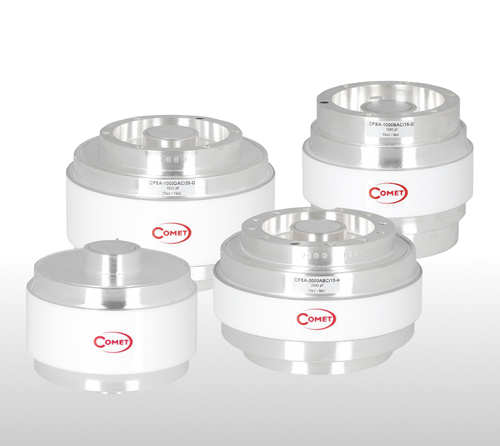

SAMi-Cap Medium power applications - Compact design - High capacitance Designed for typical AM / MW Broadcast applications - Used in broadcast and communication transmitters from 10 to 100 kW - High capacitance supports a wide range of different applications like antenna networks, output-filters and industrial RF generators - Very flat and compact design - Low inductance results in high self resonance frequency - Standardized Fixed-Capacitor-Solution for any medium power application. Product Brochure |
Outline Drawings    |
|
| Type Designation | Capacitance | Voltage Peak | Current [A] | Ø | Total Height |
alternative type names | ||
| (order number) | Cmax [pF] | Test [kV] | Imax (13,56MHz) |
[mm] | [mm] | Comet | Jennings | Jennings |
| Body-A | ||||||||
| CFSA-3570AAC/10-CA-G | 3570 | 10 | 141 | 142 | 86 | CF1C-3570E/8 | ||
| CFSA-2500AAC/15-CA-G | 2500 | 15 | 170 | 142 | 86 | CF1C-2500E/15 | ||
| CFSA-2000AAC/15-CA-G | 2000 | 15 | 228 | 142 | 86 | CF1C-2000E/15 | ||
| CFSA-2000ABC/15-HC-G | 2000 | 15 | 172 | 142 | 86 | CF1C-2000F/15 | CFDP-2000-15 | |
| CFSA-2000ABC/15-HC-GK | 2000 | 15 | 186 | 145,4 | 86 | CF1C-2000FC/15 | ||
| CFSA-1500AAC/15-HC-G | 1500 | 15 | 173 | 140 | 86 | CF1C-1500F/15 | CFDP-1500/15 | |
| CFSA-1000AAC/25-HC-GZ | 1000 | 25 | 189 | 140 | 86 | |||
| Body B | ||||||||
| CFSA-1500BAC/15-CA-G | 1500 | 15 | 143 | 116 | 86 | CF1C-1500E/15 | ||
| CFSA-1000BAC/15-CA-G | 1000 | 15 | 143 | 116 | 86 | CF1C-1000E/15 | ||
| CFSA-1000BAC/15-GC-G | 1000 | 15 | 92 | 116 | 97 | CF1C-1000G/15 | CFED-1000-15S | UFC-1000A/12/125J |
| CFSA-1000BAC/15-RA-G | 1000 | 15 | 173 | 116 | 100 | CF1C-1000F/15 | MC1-1000 | UF 1000/8/75 |
| CFSA-500BAC/20-MA-G | 500 | 20 | 227 | 114,8 | 212,8 | CF1C-500H/20 | ||
| Body C | ||||||||
| CFSA-750CAC/25-CA-G | 750 | 25 | 160 | 114,8 | 96,7 | CF1C-750F/25 | ||
| CFSA-450CAC/25-GC-G | 450 | 25 | 365 | 116 | 97 | CF1C-450E/25 | CFED-450-25S | UFC-450/15/125J |
| CFSA-350CAC/25-GC-G | 350 | 25 | 194 | 116 | 97 | CF1C-350E/25 | CFED-350-25S | UFC-350/15/125J |
| CFSA-300CAC/25-CA-G | 300 | 25 | 179 | 116 | 97 | CF1C-300E/25 | ||
| Body D | ||||||||
| CFSA-3570DAC/10-CA-G | 3570 | 15 | 203 | 140 | 102,2 | |||
| CFSA-1000DAC/25-GC-G | 1000 | 25 | 213 | 140 | 96,5 | CF1C-1000H/25 | CFED-1000-25 | |
| CFSA-700DAC/25-GC-G | 700 | 25 | 203 | 140 | 96,5 | CF1C-700E/25 | UFC-700/15/125 | |
