WVS-Technology / Produktinformationen

Uni-Con

Zur Produktübersicht ↗
Uni-Con Serie Comet-Logo
Swiss Quality
Variabler Vakuum Kondensator


Widely Used - Low Torque - Low Cost


  •    100 pF / 15 kV
  •    200 pF / 15 kV
  •    500 pF /   8 kV
  •  1000 pF /   5 kV
  •  1500 pF /   4 kV
 Produktinformationen Produktinformationen Optimized bellows design for high power operation – Identical mounting for all types allows easy switching of capacitors for slightly different applications – Series with highest current capability relative to size – Drive system optimized for high speed tuning and over 3 million cycles
  63mm diameter 54mm diameter
Uni-Con Vakuumkondensatoren Eigenschaften:
Strom (max effekt.) 95 A
Spitzenspannung 15 kV
Abmessung
(Durchmesser x Länge)		 54 x 91 mm
Gesamtlänge < 134 mm
geringe Drehzahl (typ.) 0,20 Nm
hohe Abstimmungsgeschwindigkeit

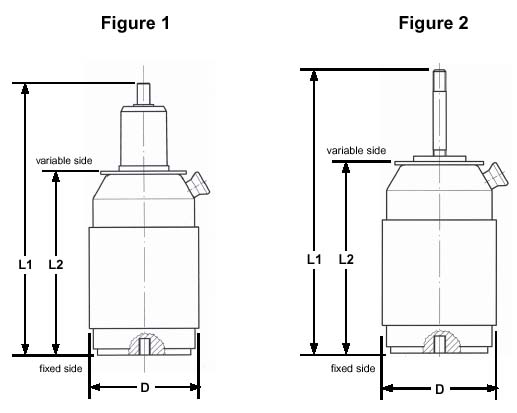

uni-con skizze

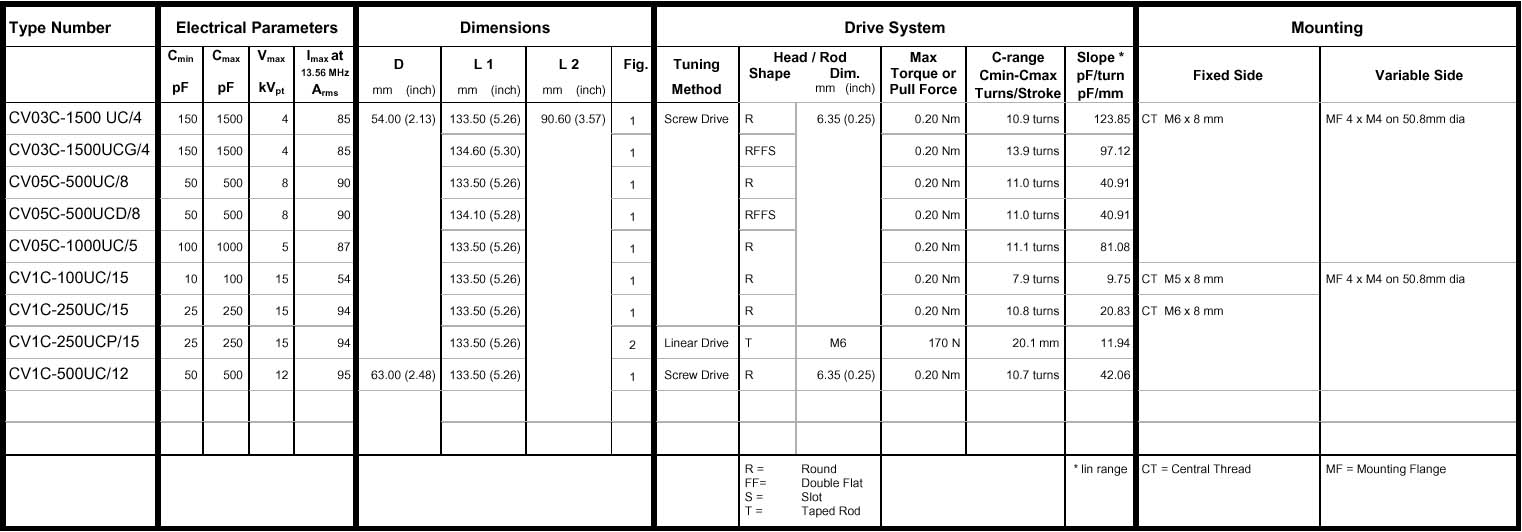

detaillierte Tabelle
Typ Kapazität Kapazität UPT Strom [A] Ø Höhe alternative Bezeichnung
Bestellungsnummer Cmax [pF] Cmin [pF] Test [kV] Imax
(13,56MHz)		 [mm] [mm] Comet
CVUN-2000AC/3-BAJA 2000 200 3 84 63 133,5 CV03C-2000UC/3
CVUN-1500AC/4-BAJA 1500 150 4 85 54 139,5
CVUN-1500AC/4-BEJA-Z 1500 150 4 85 54 134,1
CVUN-1500AC/4-BEKA 1500 150 4 85 54 139,5
CVUN-1500AC/4-CGJA 1500 150 4 85 54 132,1
CVUN-1500AC/4-CSP 1500 150 4 85 54 133,5
CVUN-1000AC/8-CSP 1000 100 8 87 54 133,5 CV05C-1000UC/8
CVUN-1000AC/5-BAJA 1000 100 5 87 54 139,5 CV05C-1000UC/5
CVUN-1000AC/5-BEJA-Z 1000 100 5 87 54 134,1 CV05C-1000UCD/5
CVUN-1000AC/5-CGJA 1000 100 5 87 54 132,1 CV05C-1000UCB/5
CVUN-1000AC/5-JHJA-Z 1000 100 5 87 54 133,6 CV05C-1000UCH/5
CVUN-500AC/8-BAJA 500 50 8 92 54 139,5 CV05C-500UC/8
CVUN-500AC/8-BEJA-Z 500 50 8 92 54 134,1 CV05C-500UCD/8
CVUN-500AC/8-BEKA 500 50 8 92 54 139,5
CVUN-500AC/8-CGJA 500 50 8 92 54 132,1
CVUN-500AC/8-CSP 500 50 8 92 54 133,5
CVUN-500AC/8-JHJA-Z 500 50 8 92     CV05C-500UCH/8
CVUN-500BC/12-BAJA 500 50 12 95 63 133,5 CV1C-500UC/12
CVUN-500BC/12-BEJA-Z 500 50 12 95     CV1C-500UCD/12
CVUN-500BC/12-JHJA-Z 500 50 12 95     CV1C-500UCH/12
CVUN-500BC/12-ZJP 500 50 12 95 63 163,5 CV1C-500UCP/12
CVUN-250AC/15-BAJA 250 25 15 94 54 139,5 CV1C-250UC/15
CVUN-250AC/15-BEJA-Z 250 25 15 94 54 134 CV1C-250UCD/15
CVUN-250AC/15-CSP 250 25 15 94 54 133,5 CV1C-250UCP/15
CVUN-100AC/15-BAJA 100 10 15 54 54 133,5 CV1C-100UC/15
CVUN-100AC/15-BEJA-Z 100 10 15 72     CV1C-100UCD/15
CVUN-100AC/15-CSP 100 10 15 72 54 133,5 CV1C-100UCP/15
CVUN-100AC/15-JHJA-Z 100 10 15 72     CV1C-100UCH/15

The information above is not to be used for design purposes. For detailed information refer to the individual datasheet, available on our website www.wvs-tech.de or from our local representative.
