FILTER ASSEMBLIES

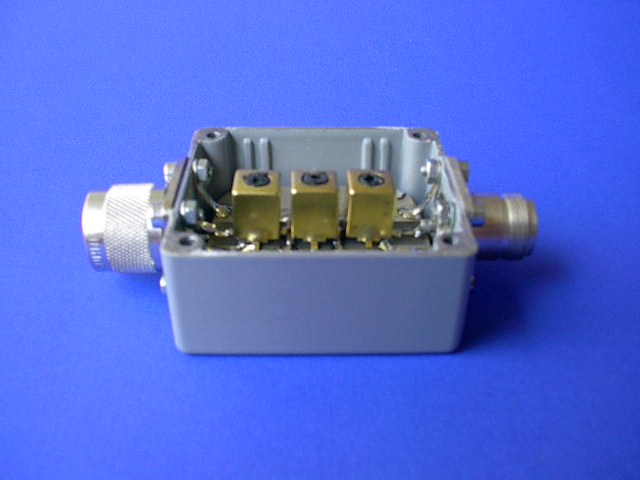

For Low Power applications up to 2 Watts we developed discrete Low- and High Pass Filter of 5th to 13th order. Input and output connectors are N-type. At 13.56MHz we offer 3rd order power filters with discrete coils and vacuum capacitors in the range of 5 to 10kW Here is an example of a 7th order Low Pass Filter. Please click on the photo to enlarge the view.

low-pass filter
cut-off-frequency 56 MHz
transmission loss < 0.4 dB
type Tschebyscheff 7. order
ripple 0,1 dB

detectors

directional coupler

Stand-Off Insulators Ceramic

HV-Isolatores Delrin
