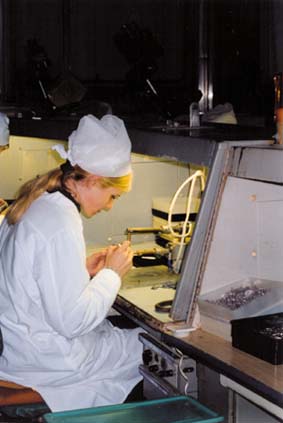

EL34 assembly |
EL34 assembly |

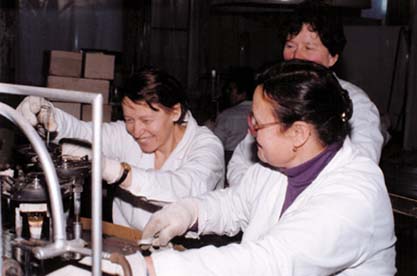

Mounting grid radiators and two halves of EL34 plate |
|

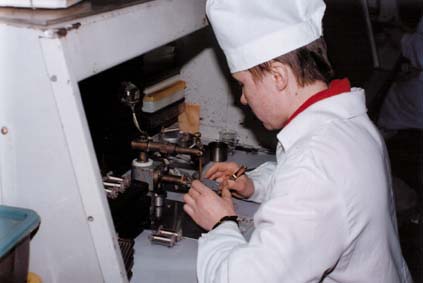

Welding of EL34 plate |

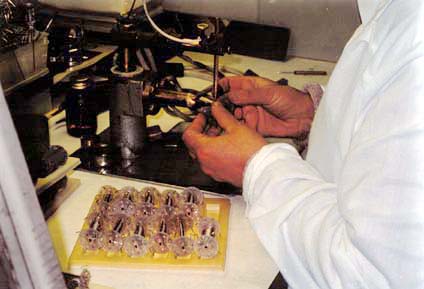

Installation of pins and evacuation tubulation in glass tube base |
Installation of pins and evacuation tubulation in glass tube base |
|

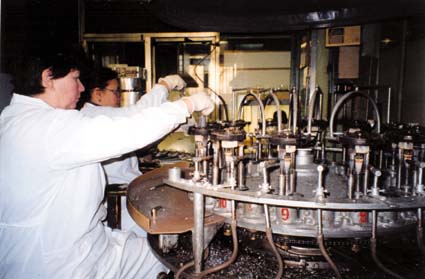

Heat sealing of glass tube base to evacuation stem and forming of glass to metal seals around the pins |

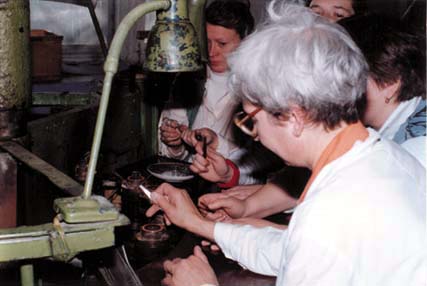

Mounting of EL34 getters |
Putting EL34 assembly into glass envelope in preparation for sealing |
|

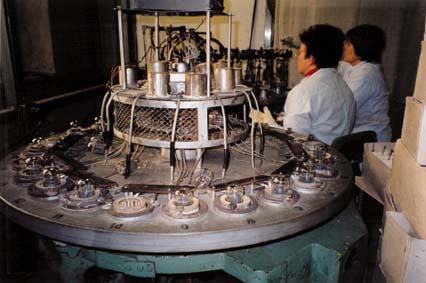

Sealing of SV6550C envelope to glass base |
Sealing of SV6550C envelope to glass base |
Cooling apparatus for sealed SV6L6GC envelope assemblies |
|
Quality inspection of SV6L6GC |

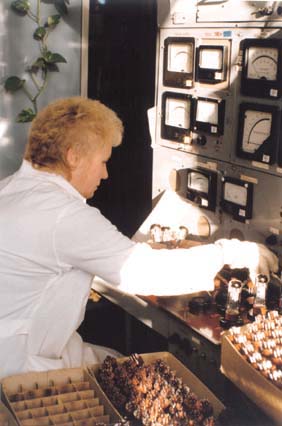

Testing EL34 |
EL34 Matching |
