| Mini-Cap Series |  Swiss Quality |
| Fixed Vacuum Capacitor |
 |

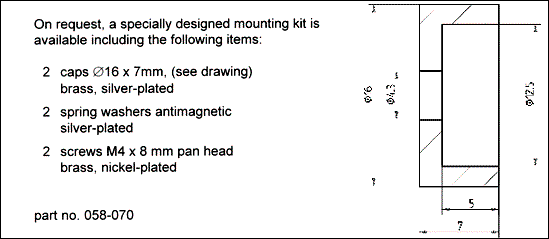

Mini-Cap High current applications - Low internal inductance - Very compact and rugged design - Ceramic- or Chip-Types replacement High quality capacitor for high current applications - Replacement for low current applications with long life time - Low internal inductance for operation in excess of 100 MHz - Very compact and uniform size - Unique rugged and cost effective design - Widely used in different applications like matching networks and RF sealing - All Mini-Caps delivered with mounting-kit for an easy installation - Optional extension rods for easy replacament. Product Brochure |
Outline Drawings     |
|
| Type Designation | Capacitance | UPT | Current [A] | Ø | Total Height |
alternative type names | |
| (order number) | Cmax | Test | Imax (13,56MHz) |
[mm] | [mm] | Comet | Jennings |
| Body-A | |||||||
| CFMN-2000AAC/3-DE-G | 2000 | 3 | 48 | 52 | MC05C-2000E/3 | ||
| CFMN-1500AAC/3-DE-G | 1500 | 3 | 48 | 52 | MC05C-1500E/3 | ||
| CFMN-1250AAC/5-DE-G | 1250 | 5 | 48 | 52 | MC05C-1250E/5 | ||
| CFMN-1000AAC/8-DE-G | 1000 | 8 | 48 | 52 | MC05C-1000E/8 | ||
| CFMN-750AAC/10-DE-G | 750 | 10 | 48 | 52 | MC05C-750E/10 | ||
| CFMN-500AAC/12-DE-G | 500 | 12 | 48 | 52 | MC05C-500E/12 | ||
| CFMN-400AAC/12-DE-G | 400 | 12 | 48 | 52 | MC05C-400E/12 | ||
| CFMN-350AAC/15-DE-G | 350 | 15 | MC05C-350E/15 | ||||
| CFMN-250AAC/15-DE-G | 250 | 15 | 48 | 52 | MC05C-250E/15 | ||
| Body-B | |||||||
| CFMN-4000BAC/5-DE-G | 4000 | 5 | 121 | 74,8 | 52 | MC08C-4000E/5 | |
| CFMN-2700BAC/5-DE-G | 2700 | 5 | 74,8 | 52 | MC08C-2700E/5 | ||
| CFMN-1000BAC/10-DE-G | 1000 | 10 | 74,8 | 52 | MC08C-1000E/10 | ||
| Body-C | |||||||
| CFMN-210CAC/15-AF-G | 210 | 15 | 48 | 62 | MC1C-210E/15 | JCSF-210-15S | |
| CFMN-200CAC/15-AF-G | 200 | 15 | 70 | 48 | 62 | MC1C-200E/15 | CLF1-200-0030 |
| CFMN-180CAC/15-AF-G | 180 | 15 | 48 | 62 | MC1C-180E/15 | ||
| CFMN-150CAC/15-AF-G | 150 | 15 | 48 | 62 | MC1C-150E/15 | ||
| CFMN-130CAC/15-AF-E | 130 | 15 | 48 | 62 | MC1C-130E/15 | ||
| CFMN-120CAC/15-AF-G | 120 | 15 | 48 | 62 | MC1C-120E/15 | JCSF-120-15S | |
| CFMN-110CAC/15-AF-G | 110 | 15 | 48 | 62 | MC1C-110E/15 | ||
| CFMN-100CAC/15-AF-G | 100 | 15 | 48 | 62 | MC1C-100E/15 | JCSF-100-15S | |
| CFMN-90CAC/15-AF-G | 90 | 15 | 48 | 62 | MC1C-90E/15 | ||
| CFMN-80CAC/15-AF-G | 80 | 15 | 70 | 48 | 62 | MC1C-80E/15 | JCSF-80-15S |
| CFMN-80CBC/15-AJ-G | 80 | 15 | 54 | 48 | 63 | MC1C-80B/15 | JCSF-80-15S |
| CFMN-70CAC/15-AF-G | 70 | 15 | 48 | 62 | MC1C-70E/15 | ||
| CFMN-50CAC/15-AF | 50 | 15 | 48 | 62 | MC1C-50E/15 | JCSF-50-15S | |
| CFMN-25CAC/15-AF | 25 | 15 | 48 | 62 | MC1C-25E/15 | JCSF-25-15S | |
| CFMN-10CAC/20-AF | 10 | 20 | 8 | 48 | 62 | MC1C-10E/20 | |
| Body-D | |||||||
| CFMN-200DAC/25-AF-G | 200 | 25 | 48 | 73 | MC2C-200E/25 | ||
| CFMN-175DAC/25-AF-G | 175 | 25 | 144 | 48 | 73 | MC2C-175E/25 | |
| CFMN-150DAC/25-AF-G | 150 | 25 | 48 | 73 | MC2C-150E/25 | ||
| CFMN-125DAC/30-AF-G | 125 | 30 | 115 | 48 | 73 | MC2C-125E/30 | |
| CFMN-100DAC/30-AF-G | 100 | 30 | 48 | 73 | MC2C-100E/30 | ||
| CFMN-50DAC/30-AF | 50 | 30 | 111 | 48 | 73 | MC2C-50E/30 | |
| CFMN-25DAC/30-AF | 25 | 30 | 35 | 48 | 73 | MC2C-25E/30 | |
| Body-E | |||||||
| CFMN-250EAC/30-DH-G | 250 | 30 | 64 | 87 | MC3C-250E/35 | ||
| CFMN-200EAC/30-DH-G | 200 | 30 | 64 | 87 | |||
| CFMN-150EAC/30-DH-G | 150 | 30 | 64 | 87 | |||
| CFMN-100EAC/30-DH-G | 100 | 30 | 64 | 87 | |||

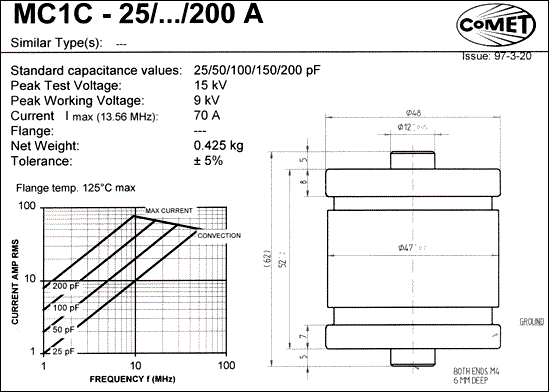

| MINI-CAPTM High Amperage Fixed Vacuum Capacitor (pat. pend.)
This new family of fixed vacuum capacitors is sold under the trade mark MINI-CAP™ featuring a simple and rugged design and showing a hold off voltage of 15 kV peak test. Typical current capability with pure convection cooling is 70 Arms at 13.56 MHz. With additional cooling the MINI-CAP™ is even capable to operate at levels above 100 Arms. Five standard versions with capacitance values of 25, 50, 100, 150 and 200 pF are available from stock. Standard tolerance on the capacitance is ± 5 %. Other capacitance values and tighter tolerances are available on request. All capacitors are of identical dimensions. COMET's unique design concept of the MINI-CAP™ allows minimum internal inductance and features good electrical connections as required in RF systems. This in turn permits reliable operation at 100 MHz and higher.
|
