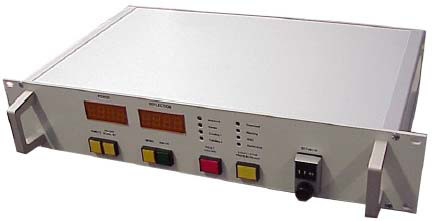

MPS 15K-245

Power Supply for 15kW Mangetron
Continuously power control
High efficiency
Stability 0.1%
Ripple approx. 5%rms at full power
Prepared for operation with magnetron
head Type:WMK-15K245
- Output 2.4Ghz / 15kWcw
- Waveguide Size WR340

MAX. OUTPUT POWER:	20kW
OUTPUT VOLTAGE:	12.2kV DC
OUTPUT CURRENT:	1,8A
INPUT VOLTAGE:	3-phase 400V/50(60)Hz
INPUT CURRENT:	35A
EFFICIENCY:	80-90% Minimum at full Output power
	Typical: 85%
VOLTAGE RIPPLE:	5% RMS, at full power
INTERLOCK:	2 off safety interlock lines
	for external use:2 off
	internal safety
	interlock lines
COOLING:	internally air cooled
OPERATION:	Interface: PLC (Analog 0...10V / digital 24Vdc)
ASSEMBLY:	Sheet-Steel-Cabinet
	Rittal TS8: IP54, RAL7035

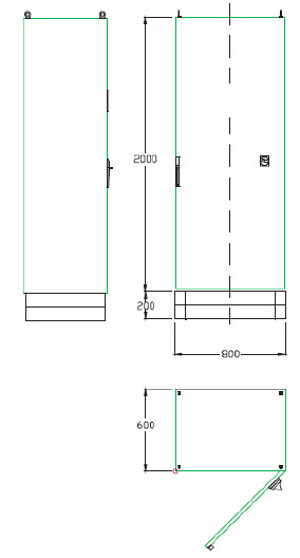

DIMENSIONS:	W = 800 mm x H = 2000 mm D = 600mm
SOCKET HEIGHT:	200mm
	approx. 500kg

Options:

MICROWAVE POWER SUPPLY
