RFD-3

Powerfluxdensity and E-field strengths measurement equipment for RF measuring
Measuring and analysis of high frequency radiation, estimation of possible health-danger of RF radiation

Standard measuring range from 750 MHz to 1,9 GHz expandable to 200 MHz with additional Antenna
Typical accuracy of ± 3 dB within the standard frequency range
Measuring of pulsed signals with PEAK-HOLD function (signals with at least 80 ms pulse duration)
Measurement of DECT-phones and other cellular phones possible
Extreme sensitivity (<10 nW/m², or 2 mV/m)

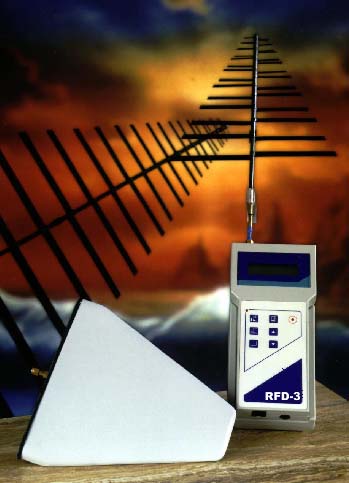

Including logarithmic periodical antenna for localising of radiation sources;frequency range 450 MHz - 2,5 GHz
Display showing power flux density in W/m 2 or mW/cm² or Field strength in V/m
Oscilloscope output for presenting the envelope curve and for connection of a headphone
Long time recording (via serial RS-232C connection and PC)

Applications

Mobile phones and corresponding stations
Cellular GSM phone and corresponding stations
Cordless DECT phone and other cordless phones (CT1,...)
Telecommunication Systems
TV Transmitters
Pulsed signals
Overview measurement in houses
Localising and identification of radiation sources (via headphone and analysis of the modulation
Determination of shielding factors of buildings

=> planning of shielding
=> testing of shielding

The PFD-3 is in form and function a progressive high frequency measurement system with a logarithmic periodical wide band antenna for measuring radiation density in the frequency range 250 MHz to over 2,5 GHz, according to used antenna. The extremely high sensitivity of the instrument makes it possible to measure C, D- and E-band network emissions easily even inside buildings. Also microwave ovens can be tested. The PFD-3 is one of the most sensitive measuring systems for non ionising radiation on the market. The measuring accuracy is good. In the frequency range from 500 MHz to 2 GHz mostly better than ± 3dB. Through the good direction sensitivity of the included antenna, the determination of the direction of RF fields is easy. Also the polarisation plain can be determined.

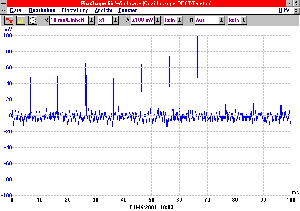

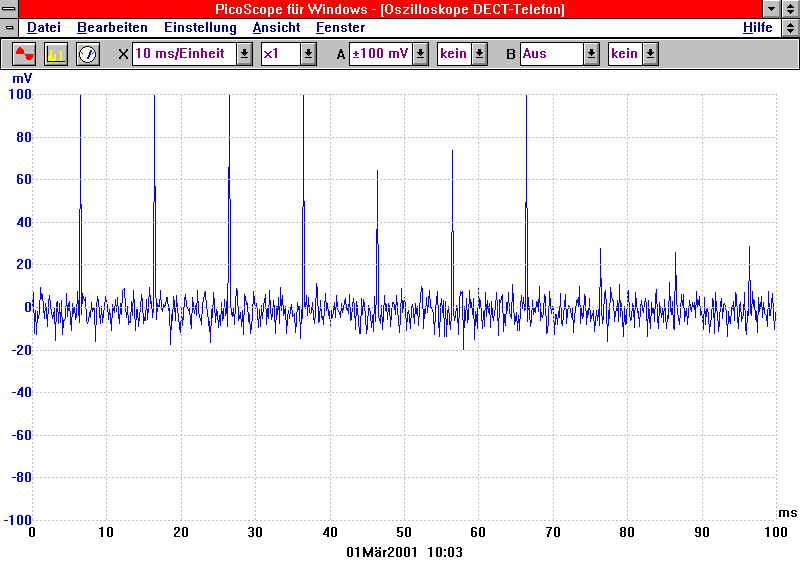

Oszilloskopdarstellung DECT -Signal

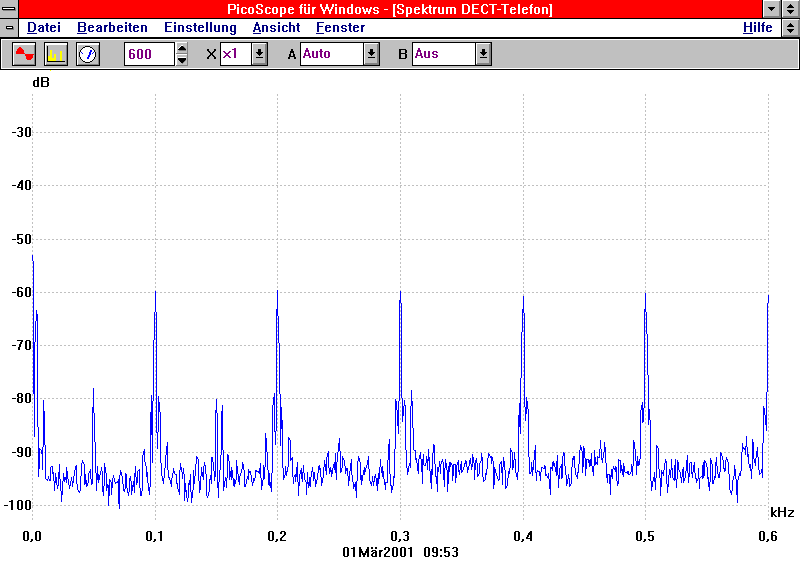

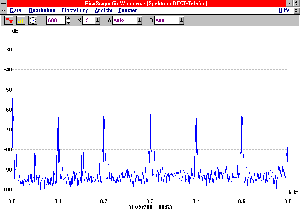

Spektralanalse DECT -Signal
